WS9260-24-250-X200总装图.pdf
|
Brand name:Wonsmart |
High pressure with dc brushless motor |
|
Blower type: Centrifugal blower |
Applicable Industries: Manufacturing Plant |
|
Electric Current Type: DC |
Blade Material: plastic |
|
Mounting: Ceiling blower |
Voltage: 24vdc |
|
Place of Origin:Zhejiang, China |
Noise Level:77dba |
|
Certification: CE, RoHS,REACH,ETL |
Warranty: 1 Year |
|
After-sales Service Provided: Online support |
Static pressure: 7kPa |
|
Controller: external |
Speed Level:28000rpm |
|
Housing material:PC |
Weight: 420g |
|
Motor type:Three Phase DC Brushless Motor |
Unit size: D92mm*H60mm |
|
Motor Type |
Three Phase Brushless |
|
Bearing Type |
NMB Ball bearing |
|
Insulation Class |
Classs F |
|
Protect Class |
IP54 |
|
Operating Temperature range |
-20 deg.C~+60.deg.C（No Condensation） |
|
Life time(MTTF): |
>20,000hours (under 25 degree C) |
|
Hall Sensor |
120 |
|
Speed @hall sensor frequency |
1HZ=60r/min |
|
24V version choose 24VDC-6A power supplier |
|
|

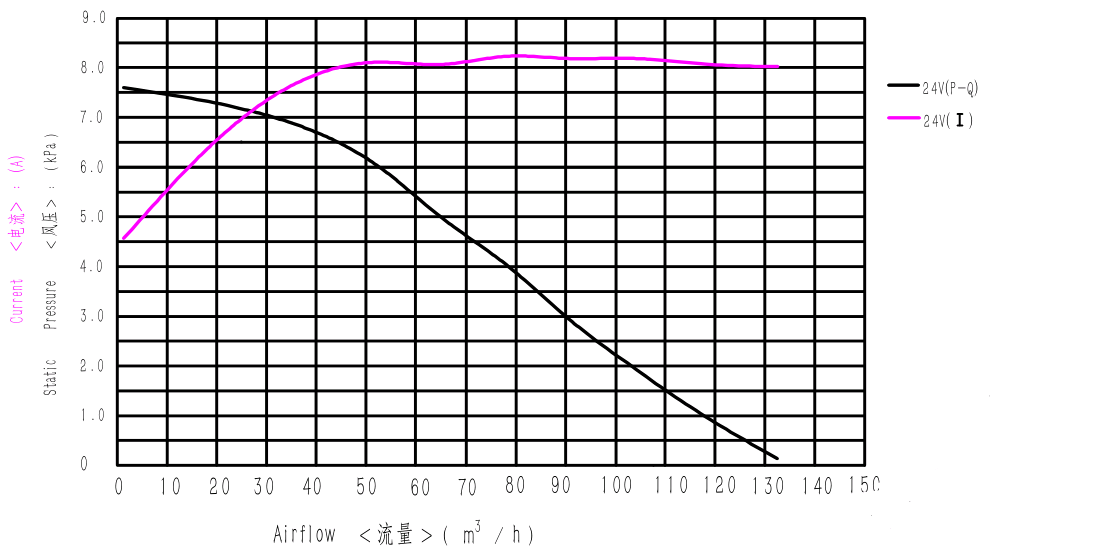

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
130 |
25,000 |
192.0 |
|
5.0（Working point） |
65 |
25,000 |
192.0 |
|
7.5 |
0 |
29,000 |
103.2 |
| Part No | WS9260-12-250-S200 | WS9260-24-250-X200 | WS9260-48-250-X200 |
| Voltage | 12 vdc | 24 vdc | 48 vdc |
| Air flow | 82 m3/h | 130 m3/h | 80 m3/h |
| Air pressure | 7.5 kpa | 7.5 kpa | 5 kpa |
| Current | 9.5a-16a | 4.8A-8A | 2.5A-4A |
|
Power |
114W-192W | 103.2W-192W | 120W-192W |
| Speed | 23,000RPM-29,500RPM | 25,000RPM-29,000RPM | 23,000RPM-28,000RPM |
