WS7040-12-X200 in China.During these years of exporting , Ningbo Wonsmart Motor Fan Co.,Ltd. now has rich experience in the worldwide markets
Contact Us Request a quote
  • WS7040-12-X200总装图.pdf WS7040-12-X200总装图.pdf
Share This Product:
  • Product Introduction
  • Product Appearance Drawing
  • Company Profile
  • Certificate Show

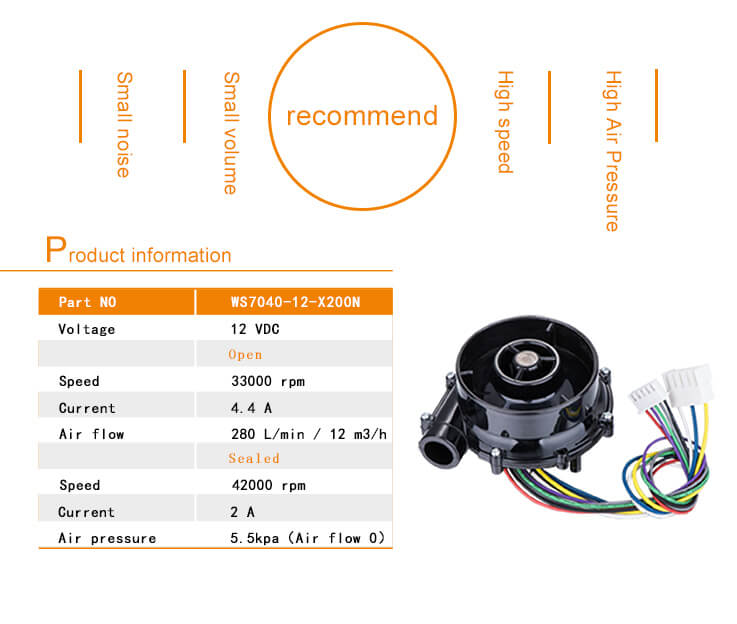

Model WS7040-12-X200 WS7040-24-V200
Voltage 12VDC 24VDC
Air flow 25m3/h 25.5m3/h
Air pressure 6kpa 6.5kpa
Speed 35000-43000 rpm 37000-45000 rpm
Current 1.5-4.5 a 0.8-2.7 a
Driver type External driver External driver
Nosie level 50-73 dba 50-73dba

  • 1

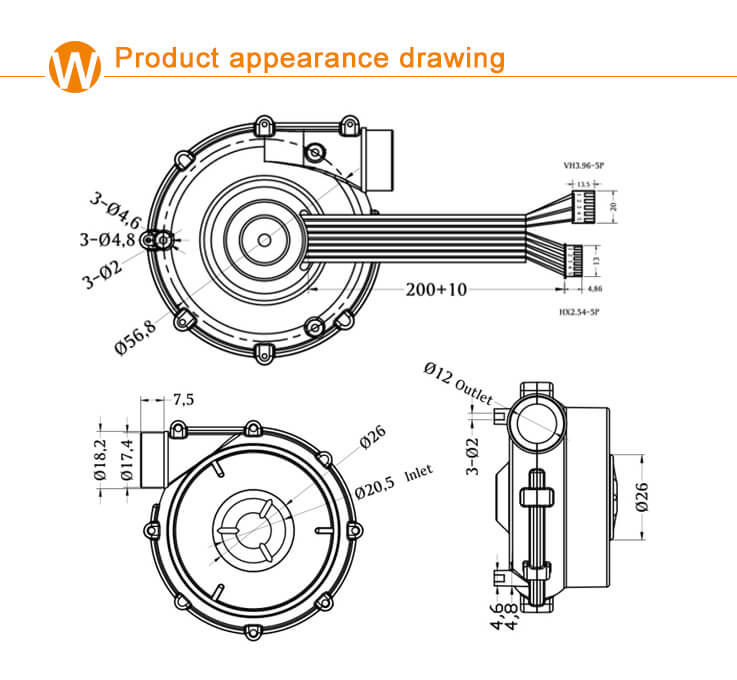

    DRAWING
  • 2
    P-Q CURVE
    WS7040-12-X200
  • 3
    Wiring Diagram
    Notes
     1.Do not use max pressure ad working point,this point is not safe since airflow is too small
    2.To add a filter onto the inlet can make the blower run longer time
    3.The right impeller run direction is CCW

About our Company

Since 2009, Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dcblowers. Blower's max airflow reaches 400 cubic meter per hour and a max pressure of 40 kpa.

  • 15 years of manufacturer experience
  • Accept ODM and OEM projects and customized specification.
