WS10690-24-200-X200
WS10690-24-200-X200
As the best China WS10690-24-200-X200 supplier,Ningbo Wonsmart Motor Fan Co.,Ltd. provides quality WS10690-24-200-X200 to global clients
-

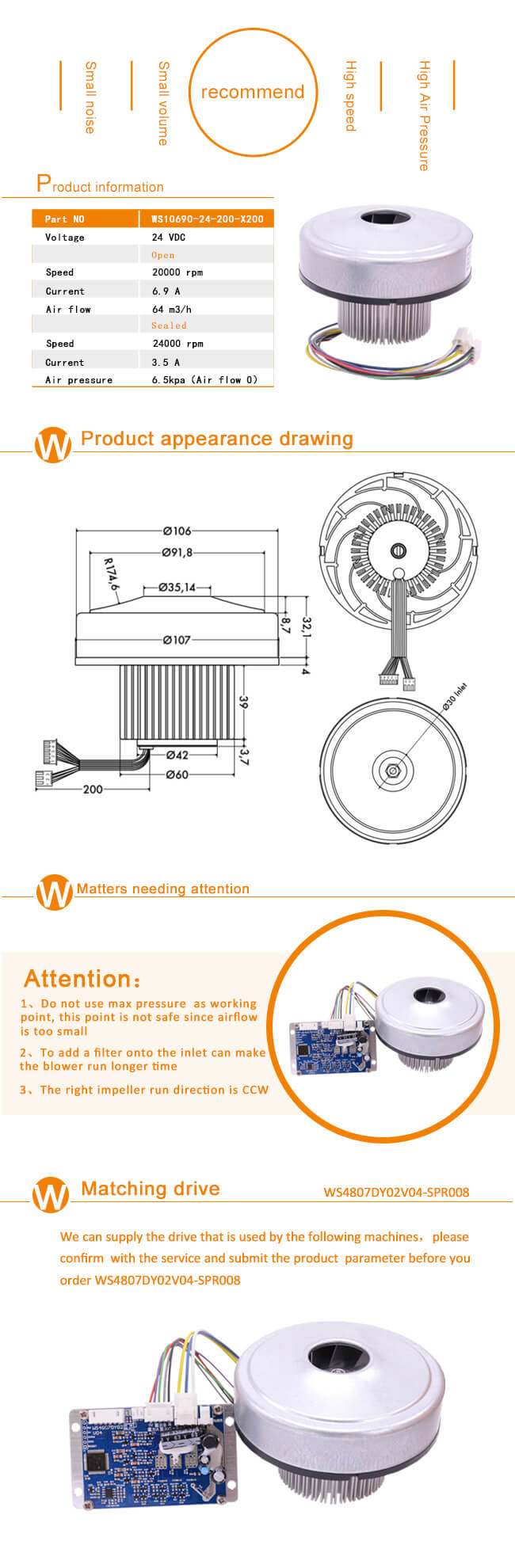

WS10690-24-200-X200总装图.pdf
| Part No | WS10690-24-200-X200 |
| Voltage | 24 VDC |
|
At Max Air flow |
|
| Speed | 24,000 rpm |
| Current | 6.0 A |
| Power | 180W |
| Air flow | 100m3/h 58.8CFM |
| Noise Level | 86[dba] |
|
At Max Air Pressure |
|
| Speed | 25,000rpm |
| Current | 3.5A |
| Power | 84W |
| Air pressure | 7Kpa |
| Block Noise Level | 90[dba] |
|
Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
100.0 |
21,000 |
180.0 |
|
5.0（Working point） |
50.0 |
22,000 |
156.0 |
|
7.0 |
0 |
25,000 |
84.0 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS10690-24-200-X200 | Voltage:24VDC |
| Air pressure:7Kpa | Air flow:100m3/h |
| Rated Speed:20,000rpm-25,000rpm | Rated Power:84w-180w |
| Noise Level:86[dba]-90[dba] | Current range:3.5a-7.5a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:365g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum |
|
After-sales Service Provided: Online support |
ID of Inlet:φ30.0mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |

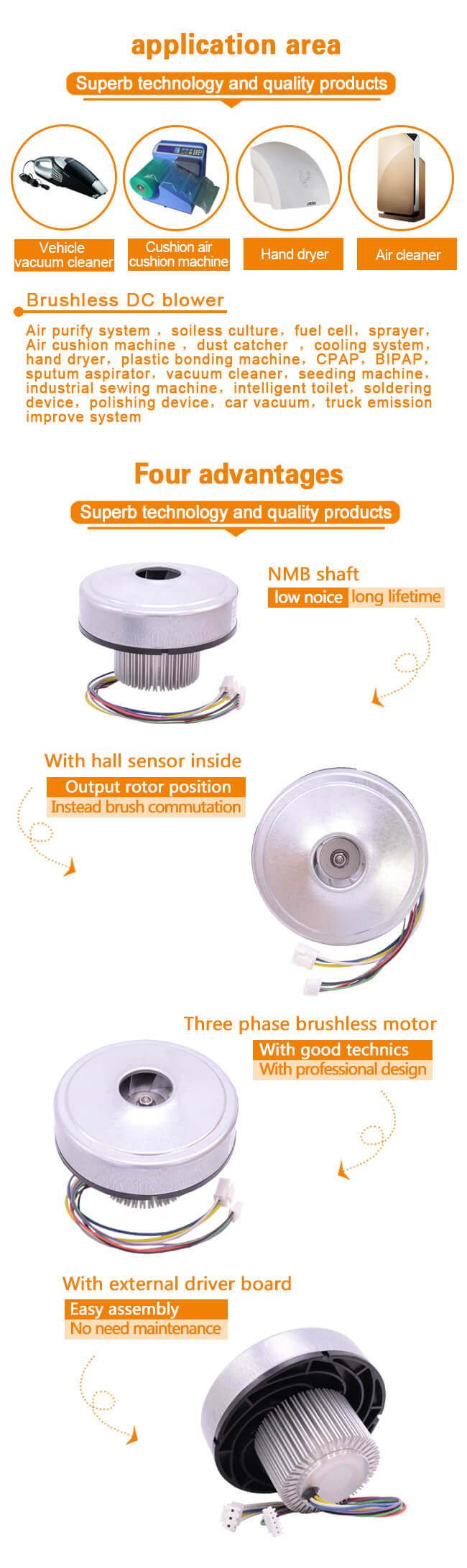

| Application:Vacuum Machine |
24V version choose 24VDC-8A power supplier |
| Part No | WS10690-12-240-S250 | WS10690-24-200-X300 | WS10690-48-240-X200 | WS10690-220-300-X300 |
| Voltage | 12 vdc | 24 vdc | 48 vdc | 220 vac |
| Air flow | 75 m3/h | 100 m3/h | 120 m3/h | 120 m3/h |
| Air pressure | 9.5 kpa | 7 kpa | 10 kpa | 10.0 kpa |
| Current | 16a-30a | 3.5A-7.5A | 2.75A-6.0A | 0.6A - 1.3A |
|
Power |
192W-360W | 84W-180W | 132W-188W | 132W - 286W |
| Speed | 23,000RPM-26,500RPM | 20,000RPM-25,000RPM | 24,000RPM-29,000RPM | 25,000RPM-29,000RRM |
