WS130120S2-24-220-S200
WS130120S2-24-220-S200
Ningbo Wonsmart Motor Fan Co.,Ltd. is the best WS130120S2-24-220-S200 manufacturer in China. Offering quality product to global customers
-
WS130120S2-24-220-S200总装图.pdf
| Part No | WS130120S2-24-220-S200 |
| Voltage | 24 VDC |
|
At Max Air flow |
|
| Speed | 21,000 rpm |
| Current | 18.0 A |
| Power | 432W |
| Air flow | 110m3/h 64CFM |
| Noise Level | 91[dba] |
|
At Max Air Pressure |
|
| Speed | 26,000rpm |
| Current | 10.0A |
| Power | 432W |
| Air pressure | 12.0Kpa |
| Block Noise Level |
97[dba] |
|

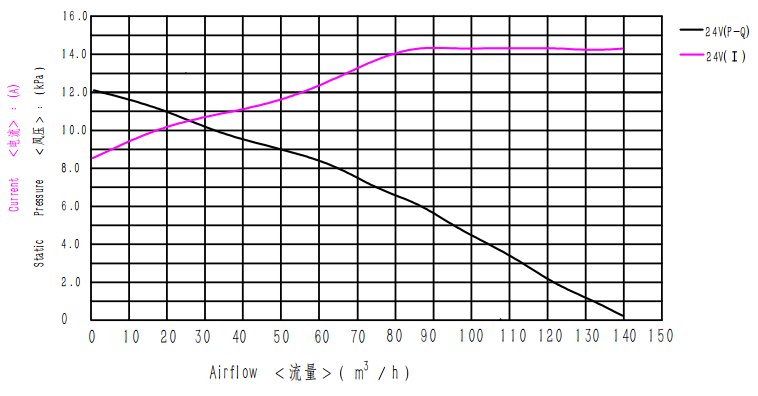

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
115.0 |
23,500 |
576.0 |
|
10.0（Working point） |
75.0 |
24,500 |
432.0 |
|
14.0 |
0 |
27,500 |
312.0 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS130120S2-24-220-S200 | Voltage:24VDC |
| Air pressure:12Kpa | Air flow:110m3/h |
| Rated Speed:21,000rpm-26,000rpm | Rated Power:240w-432w |
| Noise Level:91[dba]-96[dba] | Current range:10a-18a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:886g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum |
|
After-sales Service Provided: Online support |
ID of Inlet:φ32.0mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Vacuum Machine |
24V version choose 24VDC-15A power suppli |
| Part No | WS130120S2-12-220-S200 | WS130120S2-24-220-S200 | WS130120S2-48-220-X300 | WS130120S2-220-240-X300 |
| Voltage | 12 vdc | 24 vdc | 48 vdc | 220 vac |
| Air flow | 110 m3/h | 110 m3/h | 140 m3/h | 140 m3/h |
| Air pressure | 12.0 kpa | 12 kpa | 13 kpa | 13.0 kpa |
| Current | 20a-34a | 10A-18A | 4.8A-7.0A | 1.7A - 2.5A |
|
Power |
240W-408W | 240W-432W | 230W-336W | 374W - 550W |
| Speed | 21,000RPM-26,000RPM | 21,000RPM-26,000RPM | 21,000RPM-26,000RPM | 21,000RPM-26,000RRM |
