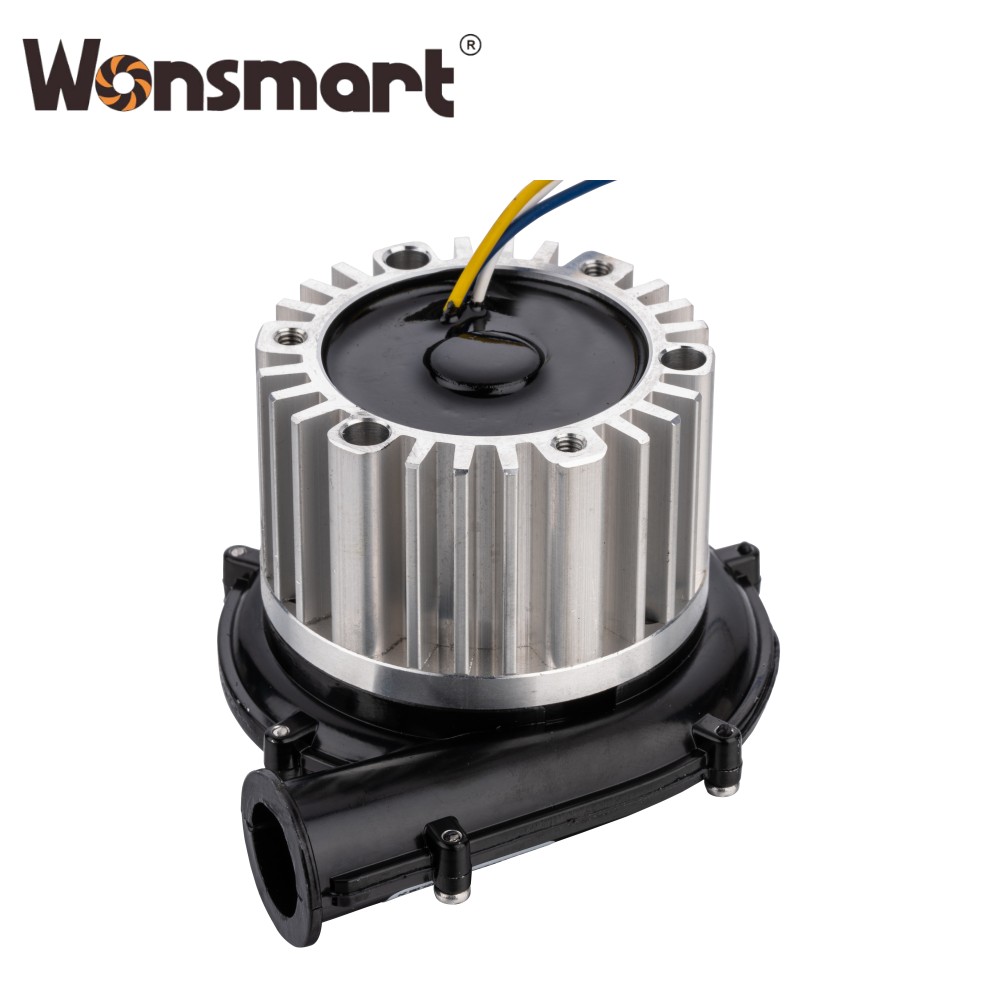

WS8570-24-S300
WS8570-24-S300
You can buy good quality Centrifugal Blower,Air Blower,WS8570, we are the best distributor from China market.
-
6c88756c438d48d6.PDF
-
053718f36b3b7083.STEP
| Part No | WS8570-24-S300 |
| Voltage | 24VDC |
|
At Max Air flow |
|
| Speed | 41,500 rpm |
| Current | 8.8A |
| Power | 211.2W |
| Air flow | 49m3/h (28CFM) |
| Noise Level | 81[dba] |
|
At Max Air Pressure |
|
| Speed | 48,000rpm |
| Current | 3.0A |
| Power | 72W |
| Air pressure | 15Kpa |
| Block Noise Level | 66[dba] |
| Air pressure(kpa) | Air flow(m3/h) | Speed (r/min) | Power(W) |
| 0 | 49.0 | 41,500 | 211.2 |
| 12.0(working point) | 22.0 | 45,000 |
156.0 |
| 15.0 | 0 | 48,000 | 72.0 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS8570-24-S300 | Voltage:24VDC |
| Air pressure:15Kpa | Air flow:49m3/h |
| Speed Range:41,500rpm-48,000rpm | Power Range:72.0w-211.2w |
| Noise Level:66[dba]-81[dba] | Current Range:3.3a-8.8a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:270g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum |
| ID of Outlet:φ16mm | ID of Inlet:φ16.8mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Medical&Big Health, Industial Automation |
24V version choose 24VDC-10A power supplier |
