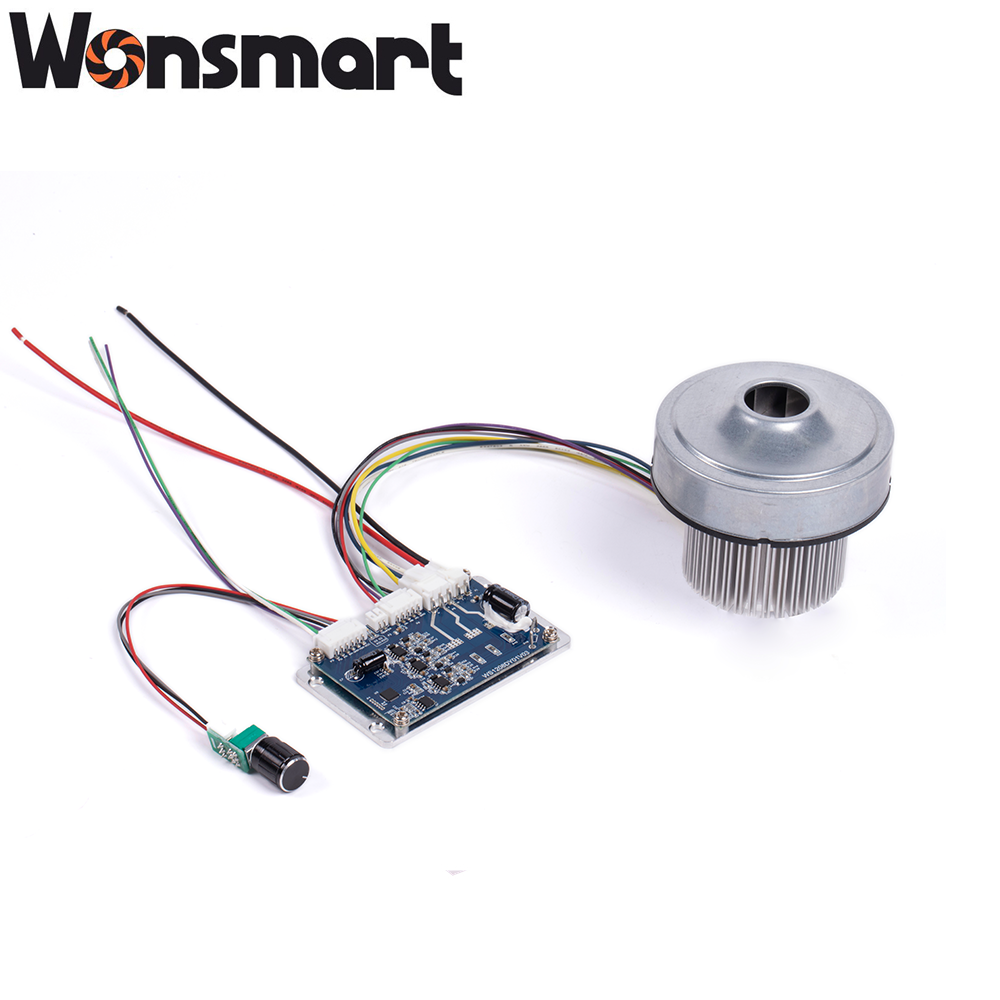

WS4235F-24-240-X200
WS4235F-24-240-X200
Ningbo Wonsmart Motor Fan Co.,Ltd. is one of the toppest Vacuum Cleaner Blower,Centrifugal brushless dc air blower,WS4235F-24-240-X200 in China.During these years of exporting , Ningbo Wonsmart Motor Fan Co.,Ltd. now has rich experience in the worldwide markets
-
WS4235F-24-240-X200总装图.pdf
| Part No | WS4235F-24-240-X300 |
| Voltage | 24VDC |
|
At Max Air flow |
|
| Speed | 24,000 rpm |
| Current | 6.6A |
| Power | 158.4W |
| Air flow | 70m3/h 41CFM |
| Noise Level | 90[dba] |
|
At Max Air Pressure |
|
| Speed | 28,000rpm |
| Current | 3.1A |
| Power | 74.4W |
| Air pressure | 7Kpa |
| Block Noise Level | 66[dba] |
|
Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
30 |
17,500 |
312.0 |
|
6.0（Working point） |
30 |
16,850 |
840.0 |
|
40.0 |
0 |
15,200 |
74.4 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS4235F-24-240-X300 | Voltage:24VDC |
| Air pressure:7.0Kpa | Air flow:70m3/h |
| Speed Range:24,000rpm-28,000rpm | Power Range:74.4w-158.4w |
| Noise Level:90[dba] | Current Range:3.1a-6.6a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:365g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum+PC |
| Blade material:plastic | ID of Inlet:φ23.0mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Vacuum Cleaner Machine |
24V version choose 24VDC-8A power supplier |
