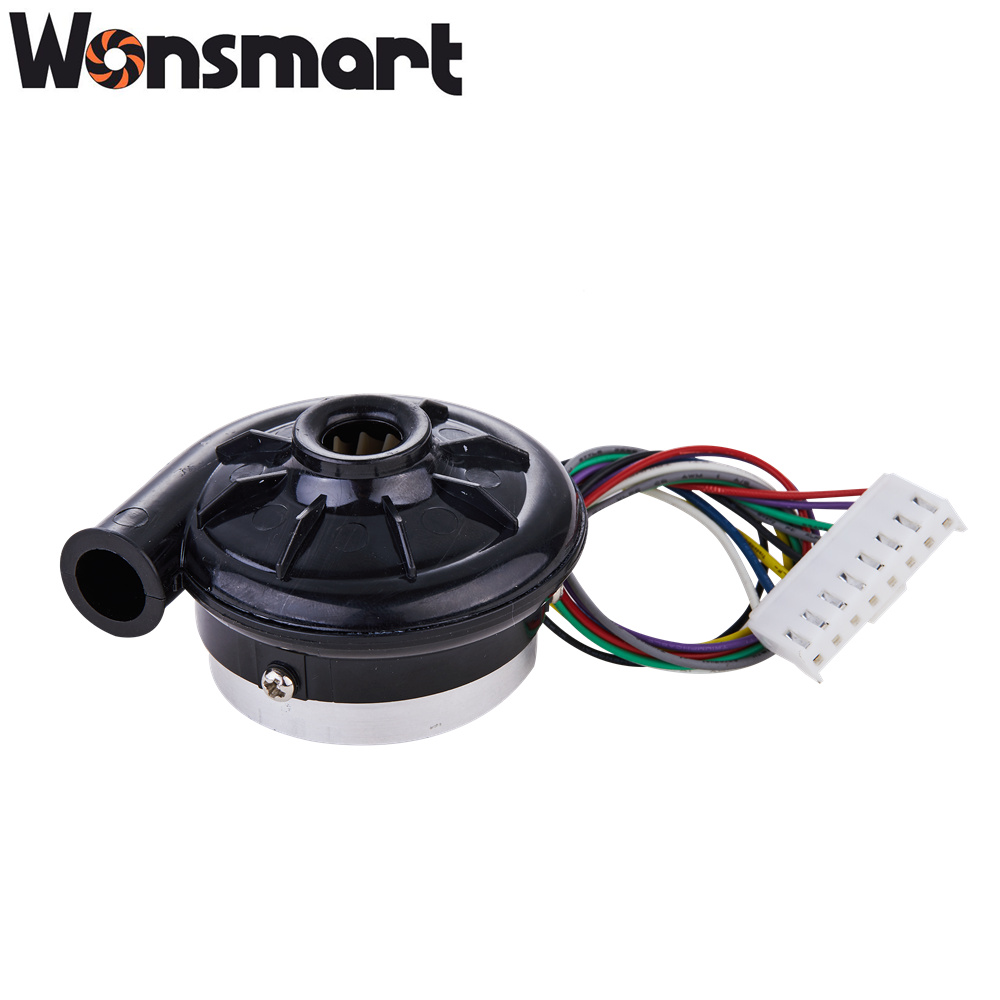

WS7040AL-24-V200
  • WS7040AL-24-V200.pdf WS7040AL-24-V200.pdf
Share This Product:
  • Description
  • Technical Parameters

Detailed introduction

NMB ball bearing guarantee long life;

Compact size but output high pressure and airflow.

Very Suitable for compact system or tools.

Can Choose wonsmart External driver controller.

Driver controller can change speed by PWM or 0~5v signal.

Notes:

1     Do not use max pressure as working point, this point is not safe since airflow is too small.

2     To add a filter onto the inlet can make the blower run longer time;

3     The right impeller run direction is CCW.

Wiring diagram

Pin1

Red

red

+5V

Pin2

Purple

purple

Hall A

Pin3

Green

green

Hall B

Pin4

Grey

gray

Hall C

Pin5

Black

black

GND

Pin6

Yellow

yellow

Phase A

Pin7

Blue

blue

Phase B

Pin8

White

white

Phase C

WS7040-12-X200

WS7040-24-V200

12VDC

24VDC

33,000rpm

36,000rpm

4.4A

2.8A

220LPM

280LPM

42,000rpm

46,000rpm

2A

0.9A

5.5kPa

6.5kPa



Motor type

Three Phase Brushless

Bearing type

NMB  NMB Ball bearing

Dielectric Strength

500VDC for 1min

Insulation Class

Class F

Protect Class

IP54

Operating Temperature range

-20deg.C~+50deg.C(No Condensation)

Service Life L10(40 C degree Rated Operation Point)

10,000 hours

(Winding Type)

(Delta)

Hall effect Sensor

120

Speed and Hall pulse relationship

1Hz=30 r/min

Product Mass

80g
