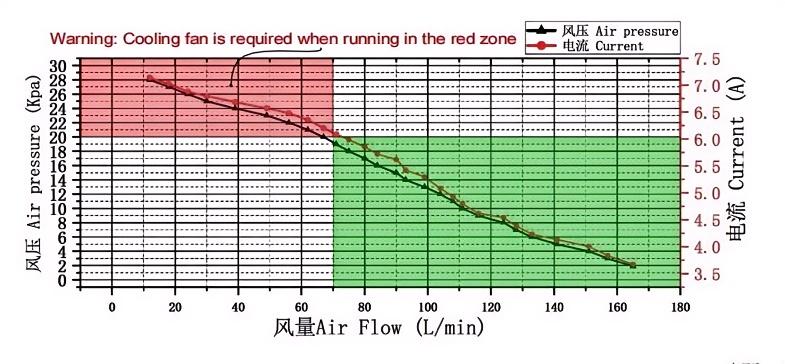

WS9070A-24-S400 blower can reach maximum 165L/min airflow at 0 kpa pressure and maximum 28.0kpa static pressure. Other load point performance refer to below P-Q curve：
WS9070A-24-S400
WS9070A-24-S400
Ningbo Wonsmart Motor Fan Co.,Ltd. is one of the toppest COOLING FAN,WS9070A-24-S400,Turbine blower in China.During these years of exporting , Ningbo Wonsmart Motor Fan Co.,Ltd. now has rich experience in the worldwide markets
-
404f00c4ed903331.PDF
| Part No | WS9070-24-S300 |
| Voltage | 24VDC |
|
At Max Air flow |
|
| Speed | 41,000 rpm |
| Current | 3.7A |
| Power | 88.8W |
| Air flow | 9.9m3/h 165LPM |
| Noise Level | 67[dba] |
|
At Max Air Pressure |
|
| Speed | 36,500rpm |
| Current |
7.2A |
| Power | 172.8W |
| Air pressure | 28Kpa |
| Block Noise Level | 47[dba] |
|
Brand name:Wonsmart |
High pressure with dc brushless motor |
|
Blower type: Centrifugal blower |
Applicable Industries: Manufacturing Plant |
|
Electric Current Type: DC |
Blade Material: plastic |
|
Mounting: Ceiling blower |
Voltage: 24vdc |
|
Place of Origin:Zhejiang, China |
Noise Level:72dba |
|
Certification: CE, RoHS,REACH,ETL |
Warranty: 1 Year |
|
After-sales Service Provided: Online support |
Static pressure: 28.0kPa |
|
Controller: external |
Speed Level:36500 rpm -41000 rpm |
|
Housing material:PC |
Weight: 800g |
|
Motor type:Three Phase DC Brushless Motor |

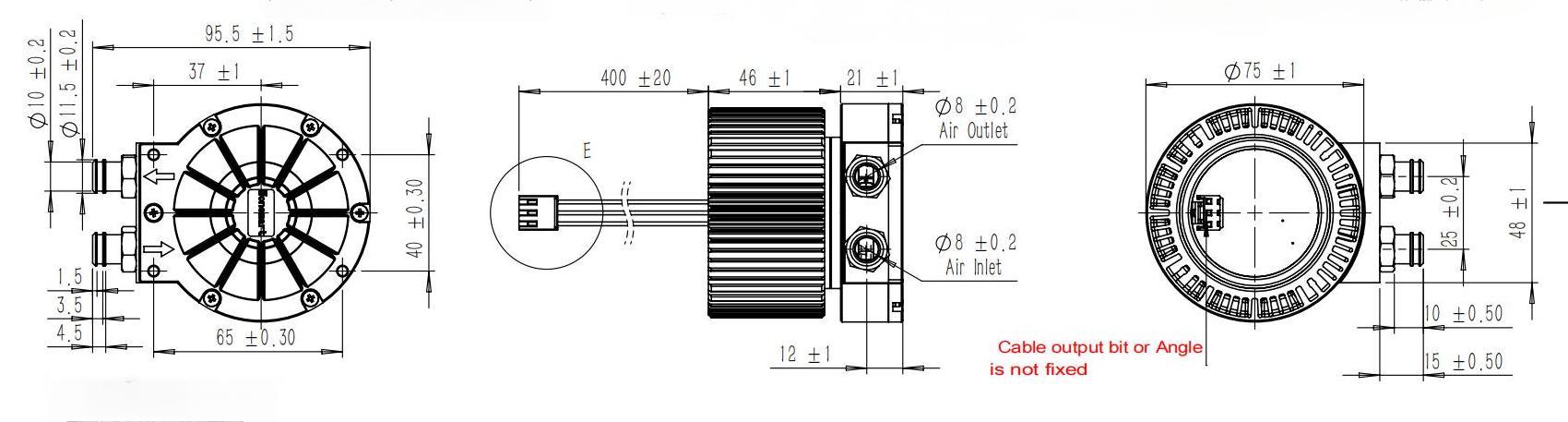

Unit size: D90mm*H70mm |
|
Current: 3.7A - 7.2A |
Power: 88.8W - 172.8W |
|
Air Flow: 165L/min |
|
|
Voltage:24VDC |
Size:90*70MM |
Weight:800g |
Model:WS9040-24-S200 |
|
Air pressure(kPa) |
Air flow(L/min) |
Speed (r/min) |
Power（W） |
|
0 |
120 |
41,000 |
88.8 |
|
12.0（Working point） |
104 |
39,500 |
122.4 |
|
28.0 |
0 |
36,500 |
172.8 |
