WS11080A-24-S200
WS11080A-24-S200
You can buy good quality ws11080a-24-s200,mini air blower,Centrifugal Blower, we are the best distributor from China market.
-
efee08f18edec3a1.PDF
| Part No | WS11080A-24-S200 |
| Voltage | 24VDC |
|
At Max Air flow |
|
| Speed | 34,300 rpm |
| Current | 9.7 A |
| Power | 232.8W |
| Air flow | 104m3/h 61CFM 1733LPM |
| Noise Level | 83[dba] |
|
At Max Air Pressure |
|
| Speed | 36,500rpm |
| Current | 4.9A |
| Power | 117.6W |
| Air pressure | 11.7Kpa |
| Block Noise Level |
58[dba] |
|
Model:WS11080A-24-S200 |
Voltage:24VDC |

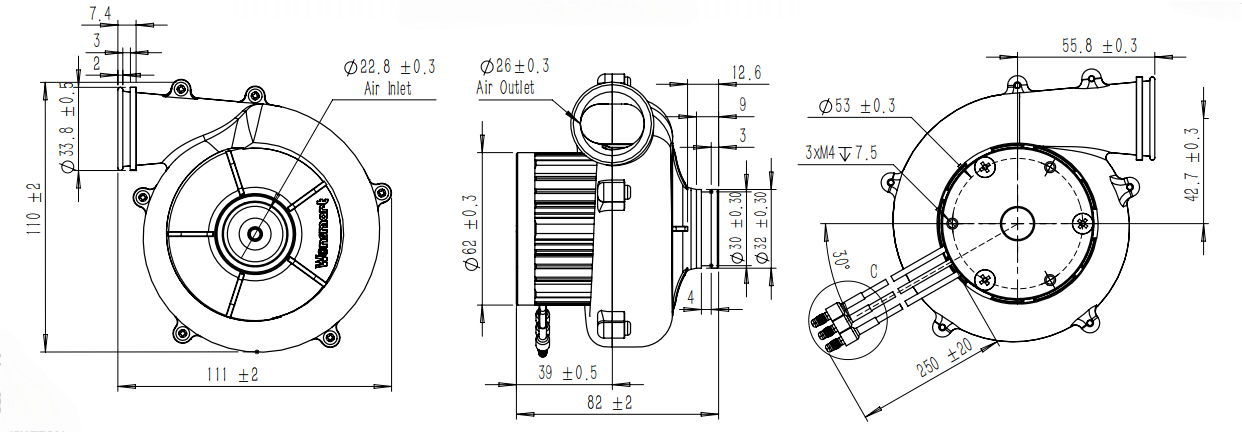

Size:92*90mm |
Driver：WS4820ZX01V01-SRP039 |
|

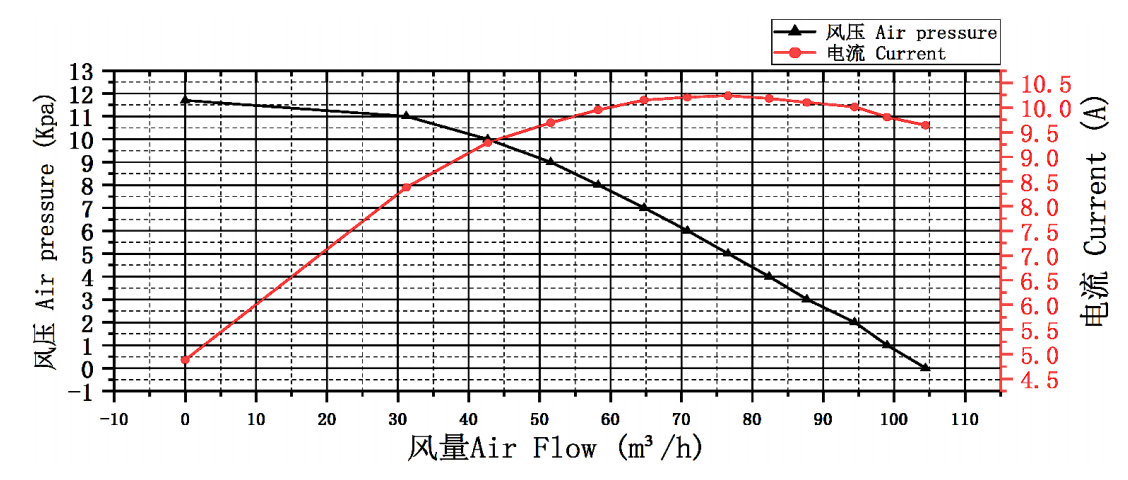

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
104.0 |
34,300 |
232.8 |
|
9.0（Working point） |
51.0 |
34,000 |
232.8 |
|
11.7 |
0 |
36,500 |
117.6 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS11080A-24-S200 | Voltage:24VDC |
| Air pressure:11.7Kpa | Air flow:55m3/h |
|
Rated Speed:34,000rpm-36,500rpm |
Rated Power:117.2w-232.8w |
| Noise Level:58[dba]-83[dba] | Current range:4.9a-9.7a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:490g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminium |
| ID of Outlet:φ26.0mm | ID of Inlet:φ22.8mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Industial Automation |
24V version choose 24VDC-10A power supplier |
