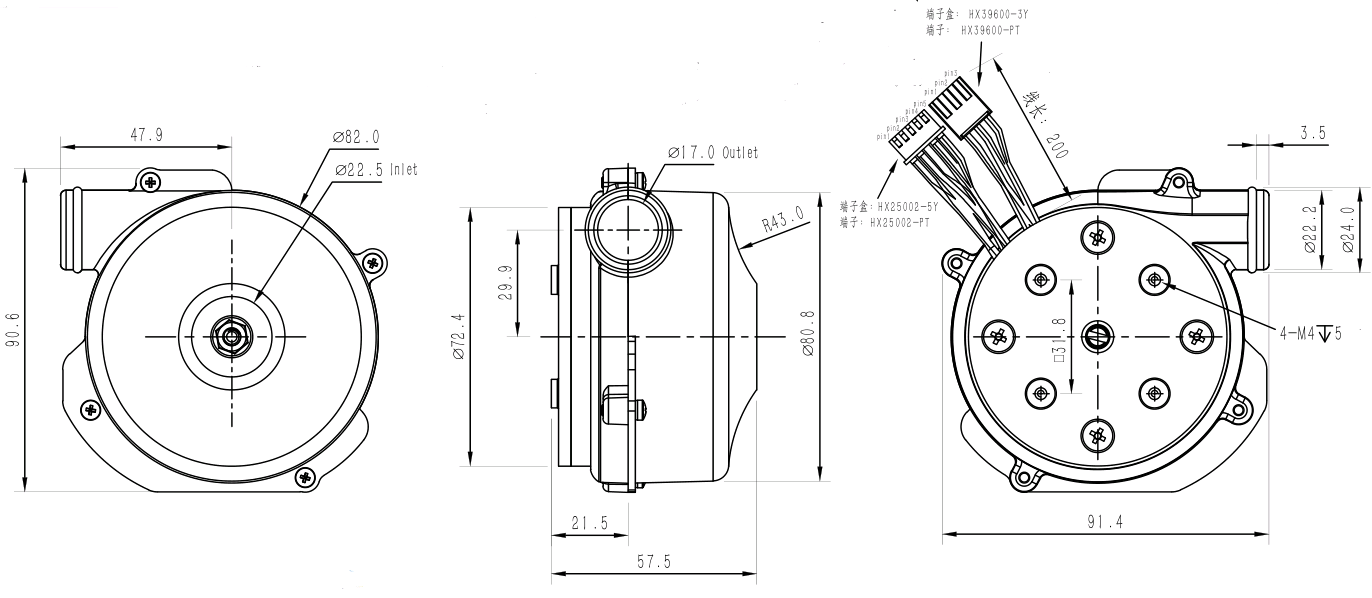

WS9250-24-240-X200 drawing .pdf
-
ab34a6f5a7c4c5cf.igs
| Part No | WS9250-24-240-X200 |
| Voltage | 24VDC |
|
At Max Air flow |
|
| Speed | 24,000 rpm |
| Current | 7.2A |
| Power | 172.8W |
| Air flow | 57m3/h 33CFM 950LPM |
| Noise Level | 84[dba] |
|
At Max Air Pressure |
|
| Speed | 31,000rpm |
| Current | 3.5A |
| Power | 84.0W |
| Air pressure | 8.5Kpa |
| Block Noise Level | 59[dba] |
|

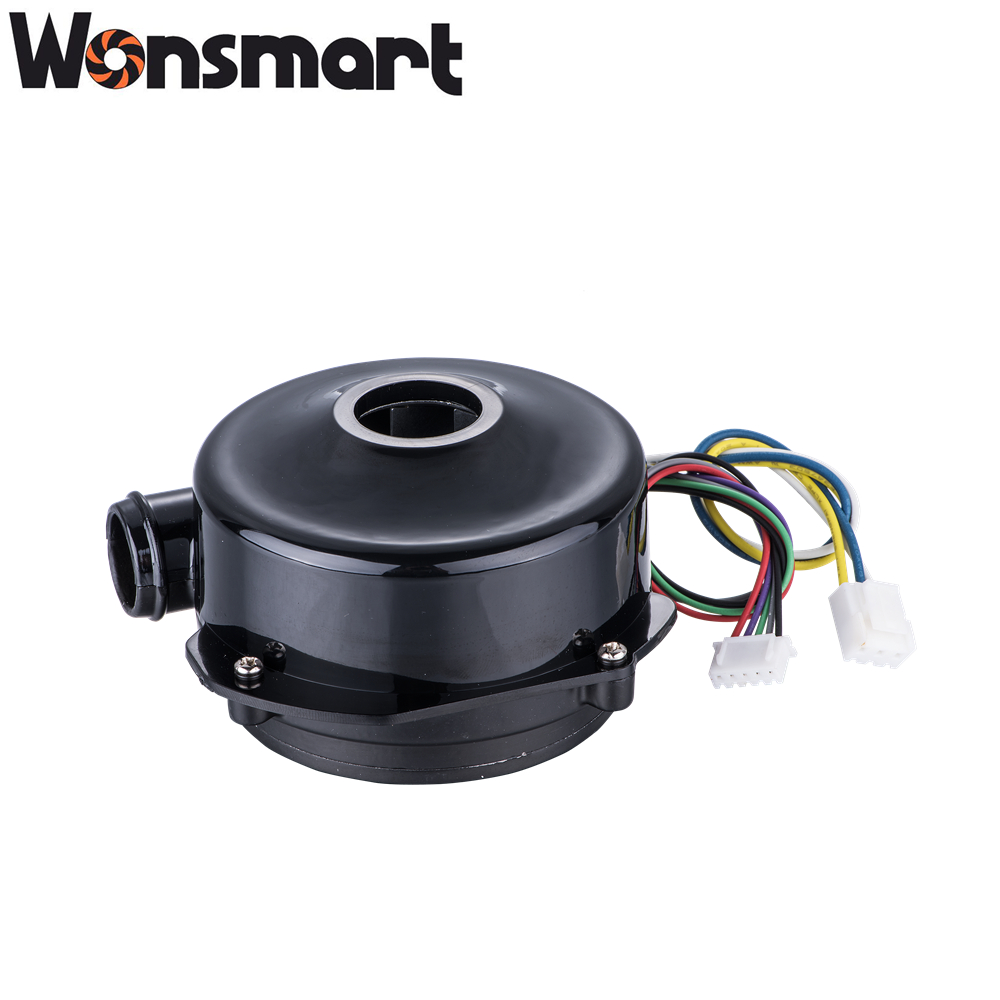

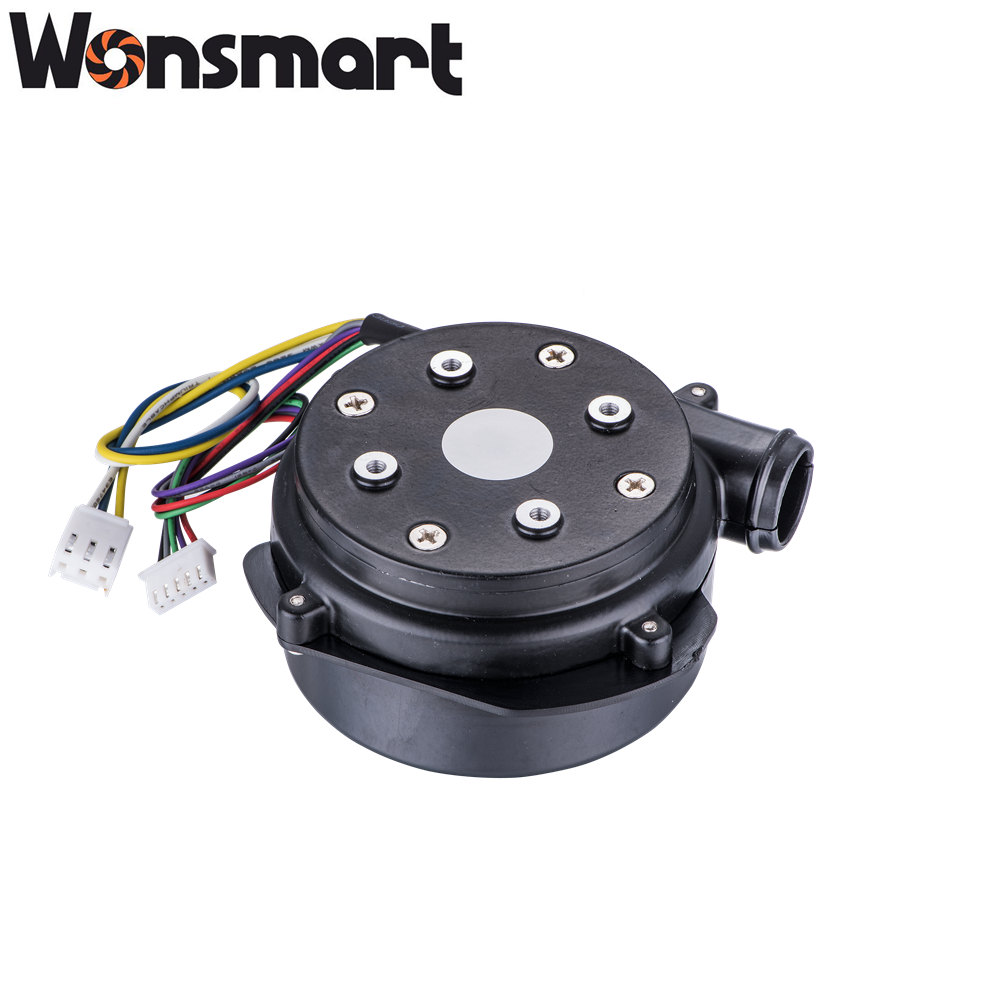

Model:WS9250-24-240-X200 |
Voltage:24VDC |
Size:92*50MM |
Weight:420g |
|

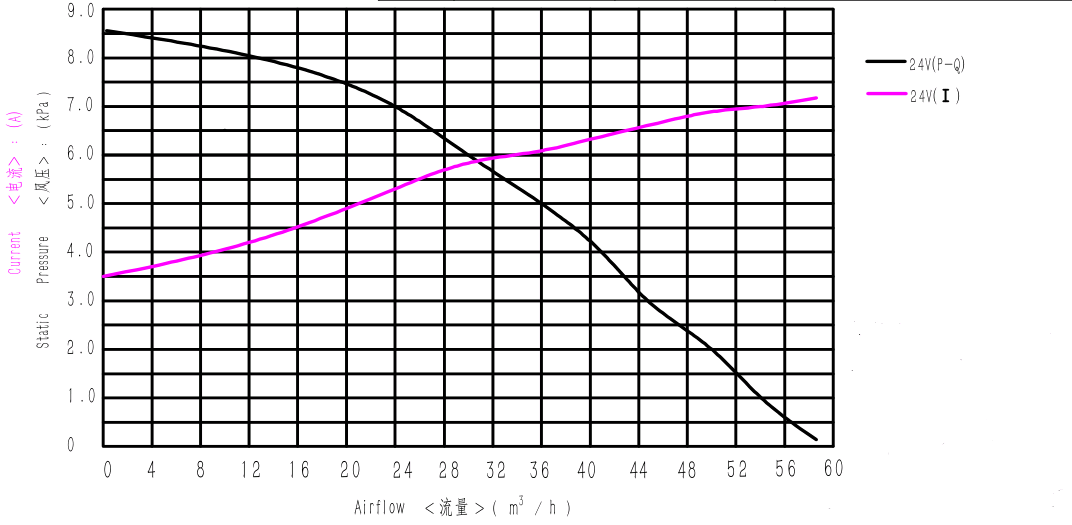

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
57 |
24,000 |
172.8 |
|
6.0（Working point） |
30 |
27,000 |
139.2 |
|
8.5 |
0 |
31,000 |
84.0 |
|
Brand name:Wonsmart |
High pressure with dc brushless motor |
|
Blower type: Centrifugal blower |
Applicable Industries: Manufacturing Plant |
|
Electric Current Type: DC |
Blade Material: plastic |
|
Mounting: Ceiling blower |
Voltage: 24vdc |
|
Place of Origin:Zhejiang, China |
Noise Level:73dba |
|
Certification: CE, RoHS,REACH,ETL |
Warranty: 1 Year |
|
After-sales Service Provided: Online support |
Static pressure: 8.5kPa |
|

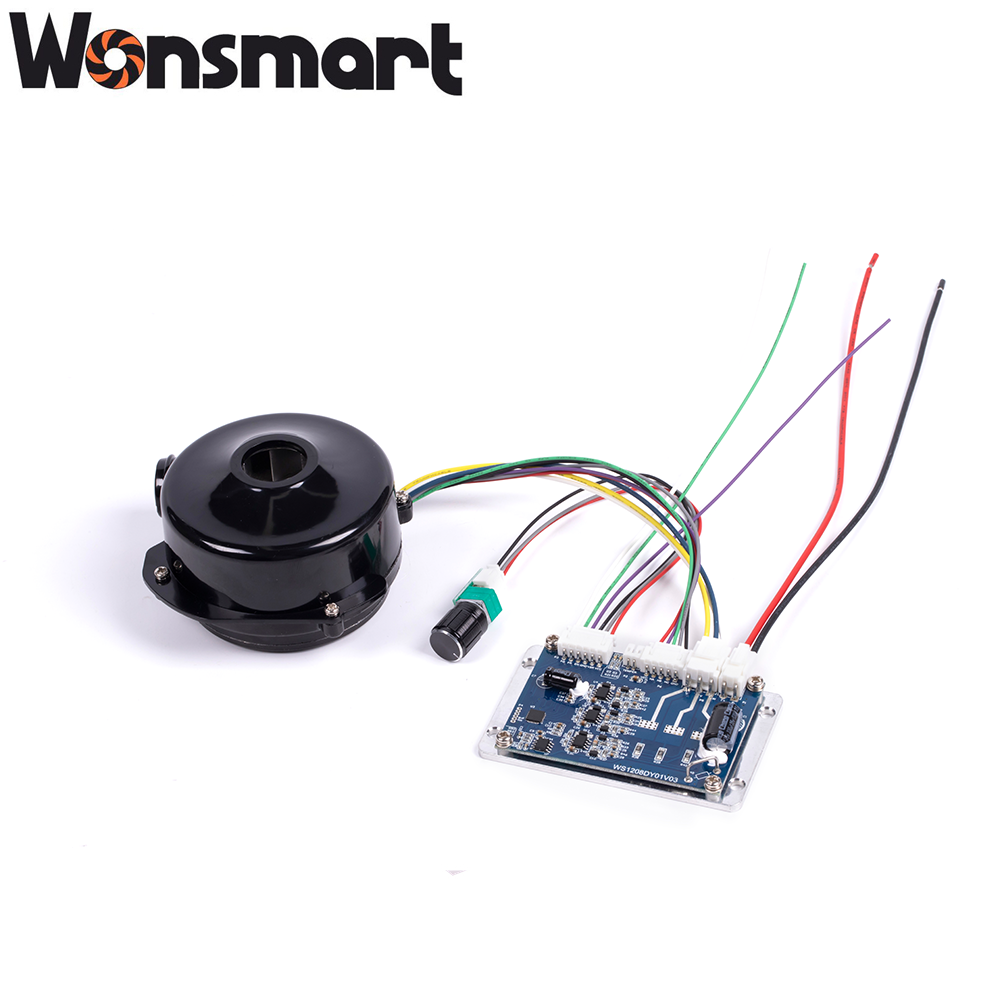

Controller: external |
Speed Level:24000rpm-31000rpm |
|
Housing material:PC |
Weight: 420g |
|
Motor type:Three Phase DC Brushless Motor |
Unit size: D92mm*H50mm |
|
Motor Type |
Three Phase Brushless |
|
Bearing Type |
NMB Ball bearing |
|
Insulation Class |
Classs F |
|
Protect Class |
IP54 |
|
Operating Temperature range |
-20 deg.C~+60.deg.C（No Condensation） |
|
Life time(MTTF): |
>20,000hours (under 25 degree C) |
|
Hall Sensor |
120 |
|
Speed @hall sensor frequency |
1HZ=30r/min |
|
24V version choose 24VDC-8A power supplier |
|
| Part No | WS9250-12-240-S200 | WS9250-24-240-X200 |
| Voltage | 12 vdc | 24 vdc |
| Air flow | 40 m3/h | 57 m3/h |
| Air pressure | 7.0 kpa | 8.5 kpa |
| Rated Current | 7.6A-19A | 3.5A-7.2A |
|
Rated Power |
96W-180W | 84W-172.8W |
| Rated Speed | 24,000RPM-28,500RPM | 24,000RPM-31,000RPM |
