WS7040-24-V200
  • WS7040-24-V200总装图.pdf WS7040-24-V200总装图.pdf
Share This Product:
  • Description
  • Technical Parameters

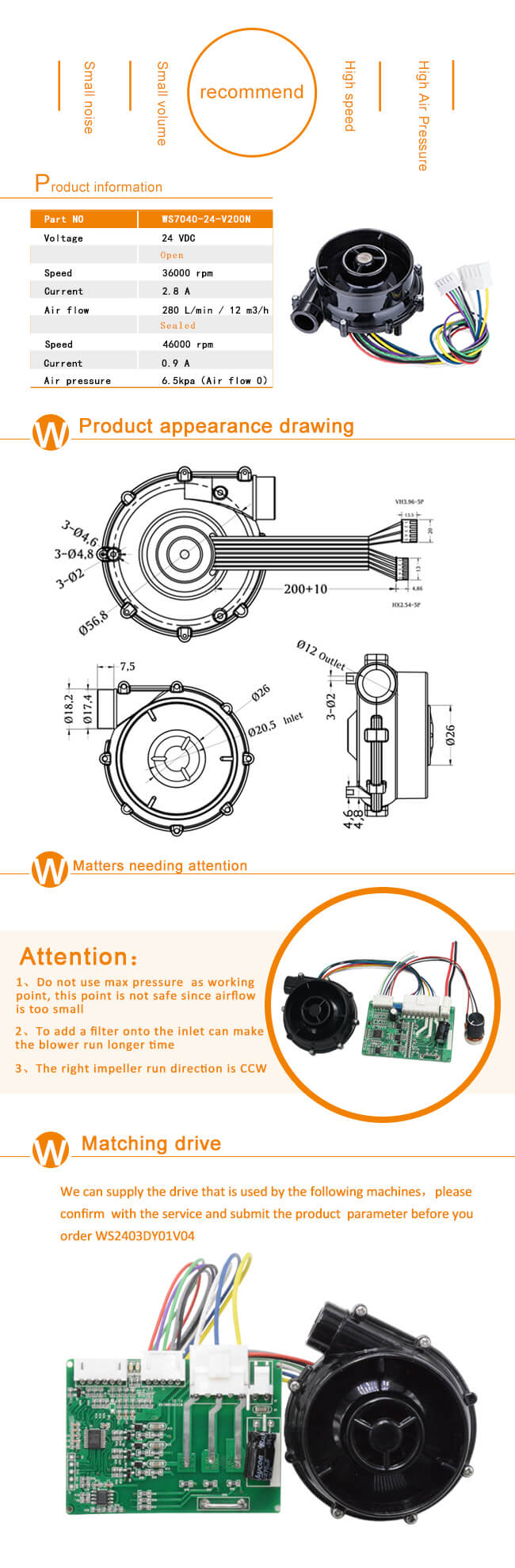

Detailed introduction

NMB ball bearing guarantee long life;

Compact size but output high pressure and airflow.

Very Suitable for compact system or tools.

Can Choose wonsmart External driver controller.

Driver controller can change speed by PWM or 0~5v signal.

Notes:

1     Do not use max pressure as working point, this point is not safe since airflow is too small.

2     To add a filter onto the inlet can make the blower run longer time;

3     The right impeller run direction is CCW.

Wiring diagram

Pin1

Red

red

+5V

Pin2

Purple

purple

Hall A

Pin3

Green

green

Hall B

Pin4

Grey

gray

Hall C

Pin5

Black

black

GND

Pin6

Yellow

yellow

Phase A

Pin7

Blue

blue

Phase B

Pin8

White

white

Phase C

WS7040-12-X200

WS7040-24-V200

12VDC

24VDC

33,000rpm

36,000rpm

4.4A

2.8A

220LPM

280LPM

42,000rpm

46,000rpm

2A

0.9A

5.5kPa

6.5kPa



P/N:

unit

WS7040-12-X200

WS7040-24-V200

Rated Voltage

[V]

12

24

Noise

[dBA]

65

65

Motor Pole pairs


1

1

Resistance --Phase to Phase

[Ohm]

0.9

1.6



Motor type

Three Phase Brushless

Bearing type

NMB  NMB Ball bearing

Dielectric Strength

500VDC for 1min

Insulation Class

Class F

Protect Class

IP54

Operating Temperature range

-20deg.C~+50deg.C(No Condensation)

Service Life L10(40 C degree Rated Operation Point)

10,000 hours

(Winding Type)

(Delta)

Hall effect Sensor

120

Speed and Hall pulse relationship

1Hz=30 r/min

Product Mass

80g
