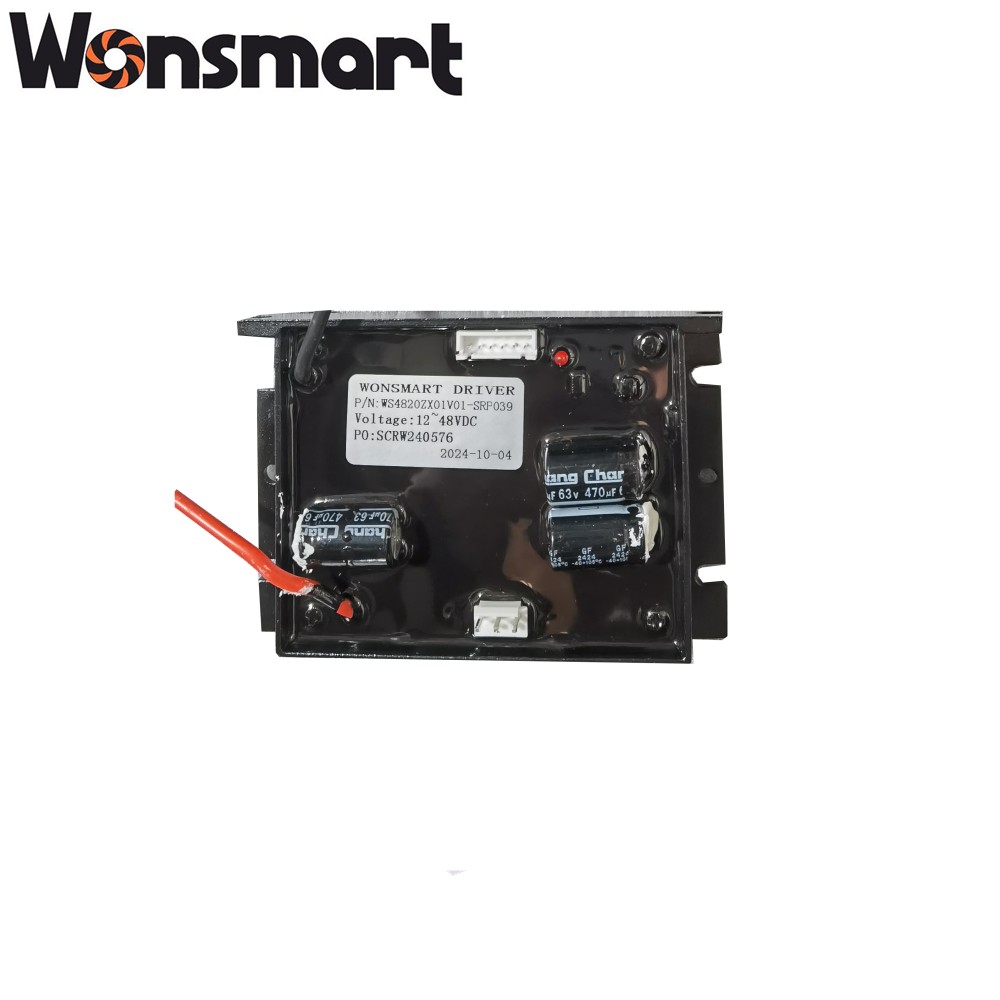

WS4820ZX01V01-SRP039
WS4820ZX01V01-SRP039
Ningbo Wonsmart Motor Fan Co.,Ltd. is one of the toppest Driver,WS4820ZX01V01 in China.During these years of exporting , Ningbo Wonsmart Motor Fan Co.,Ltd. now has rich experience in the worldwide markets
-
aee4a2c927cfdf87.PDF
| Driver Model | WS4820ZX01V01-SRP039 |
| Driving Method | Senseless square wave |
| Control Mode | 0-5v or PWM |
| Enabling Methods | High-level operation,Low-level reverse |
| Forward and Reverse Modes | High-level forward,Low-level reverse |
| Speed Feedback | HZ*60/P=RPM |
| Maximum Working Current | 8A |
| Working Voltage | DC12V~48V |
| Undervoltage Protection | ↓7V |
| Overvoltage Protection | ↑55.2V |
| Working Temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+80℃ |
