Brand name:Wonsmart |

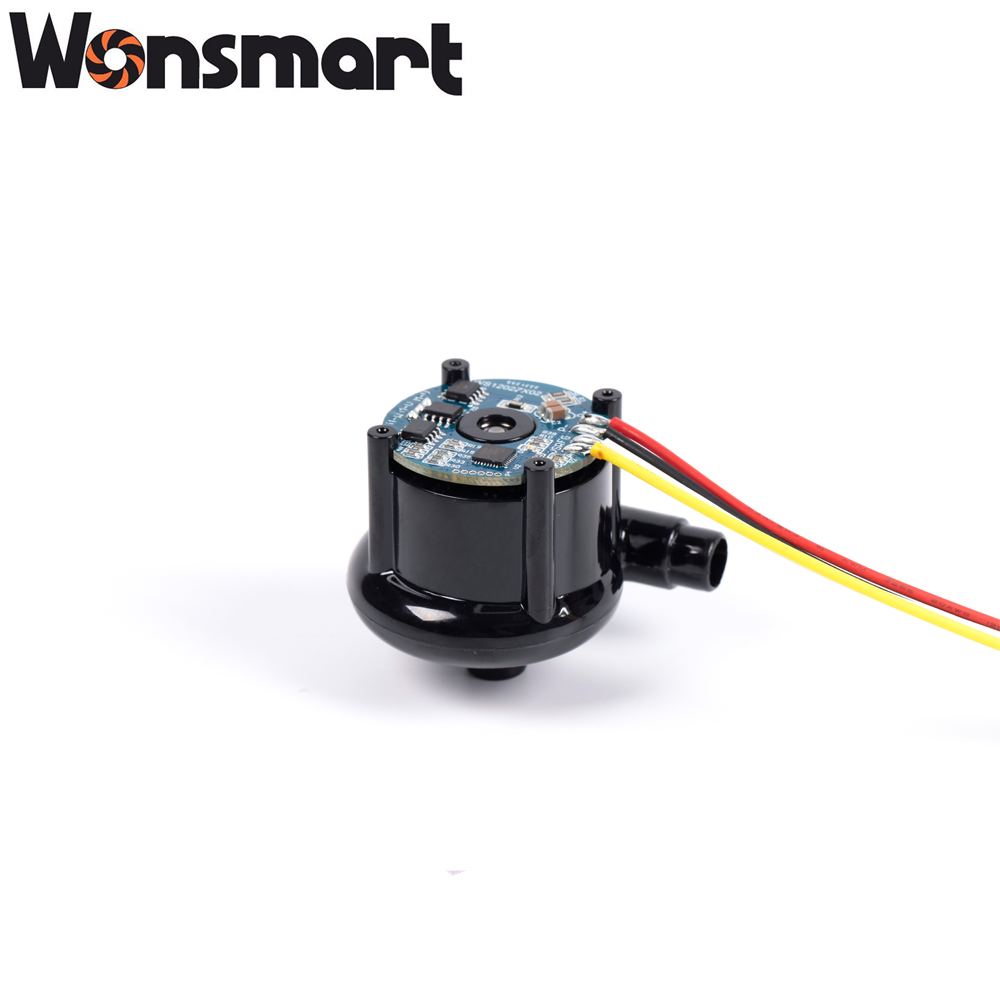

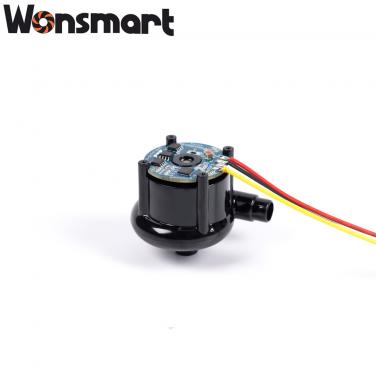

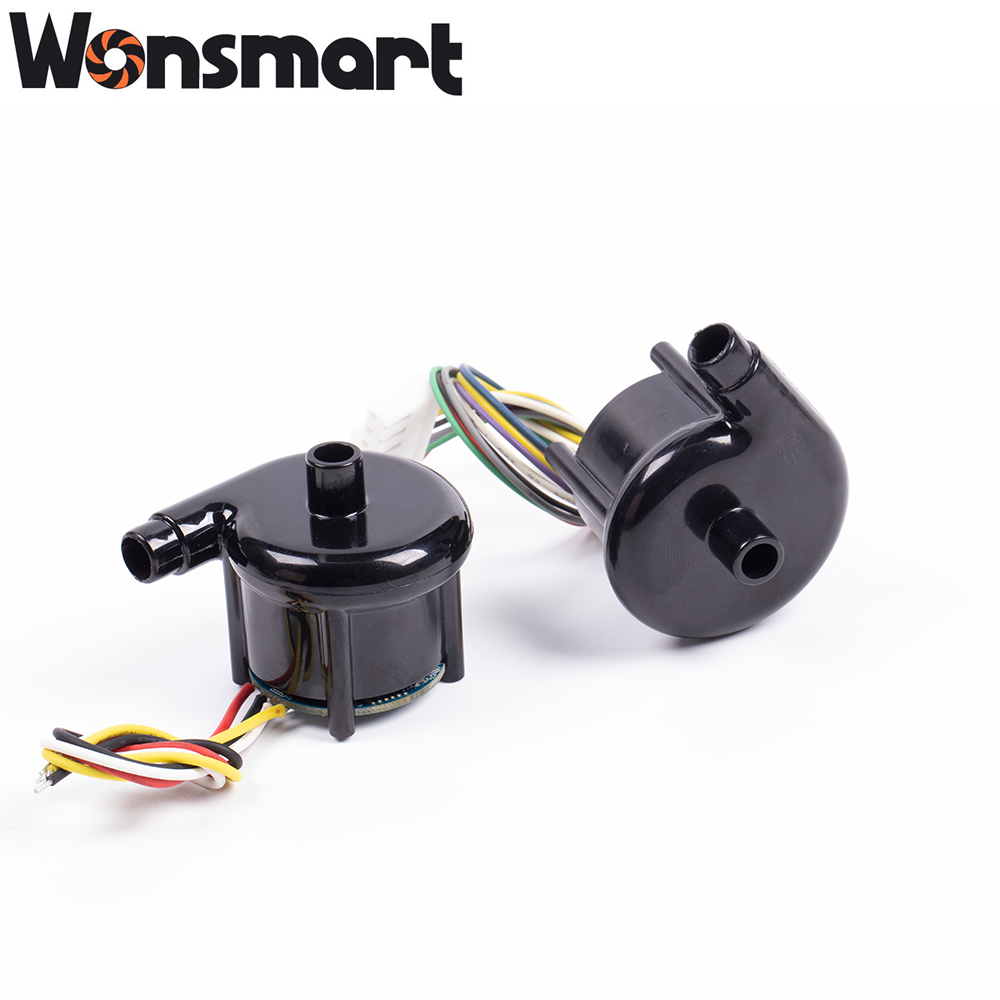

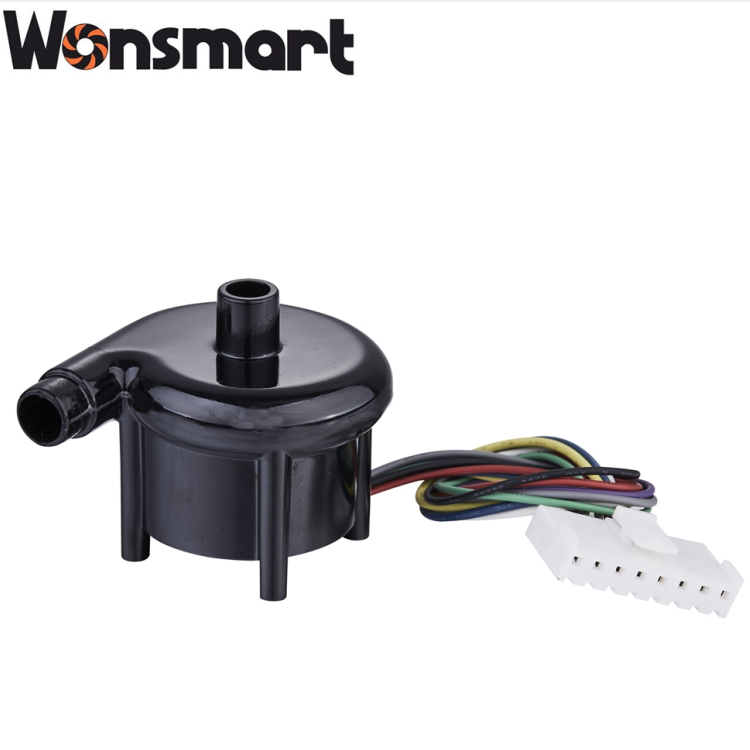

High pressure with dc brushless motor |
|
Blower type: Centrifugal blower |
Speed Control:potentiometer,PWM,0-5V signal |
|
Electric Current Type: DC |
Blade Material: plastic |
|
Mounting: Ceiling blower |
Voltage: 12vdc |
|
Place of Origin:Zhejiang, China |
Noise Level:65dba |
|

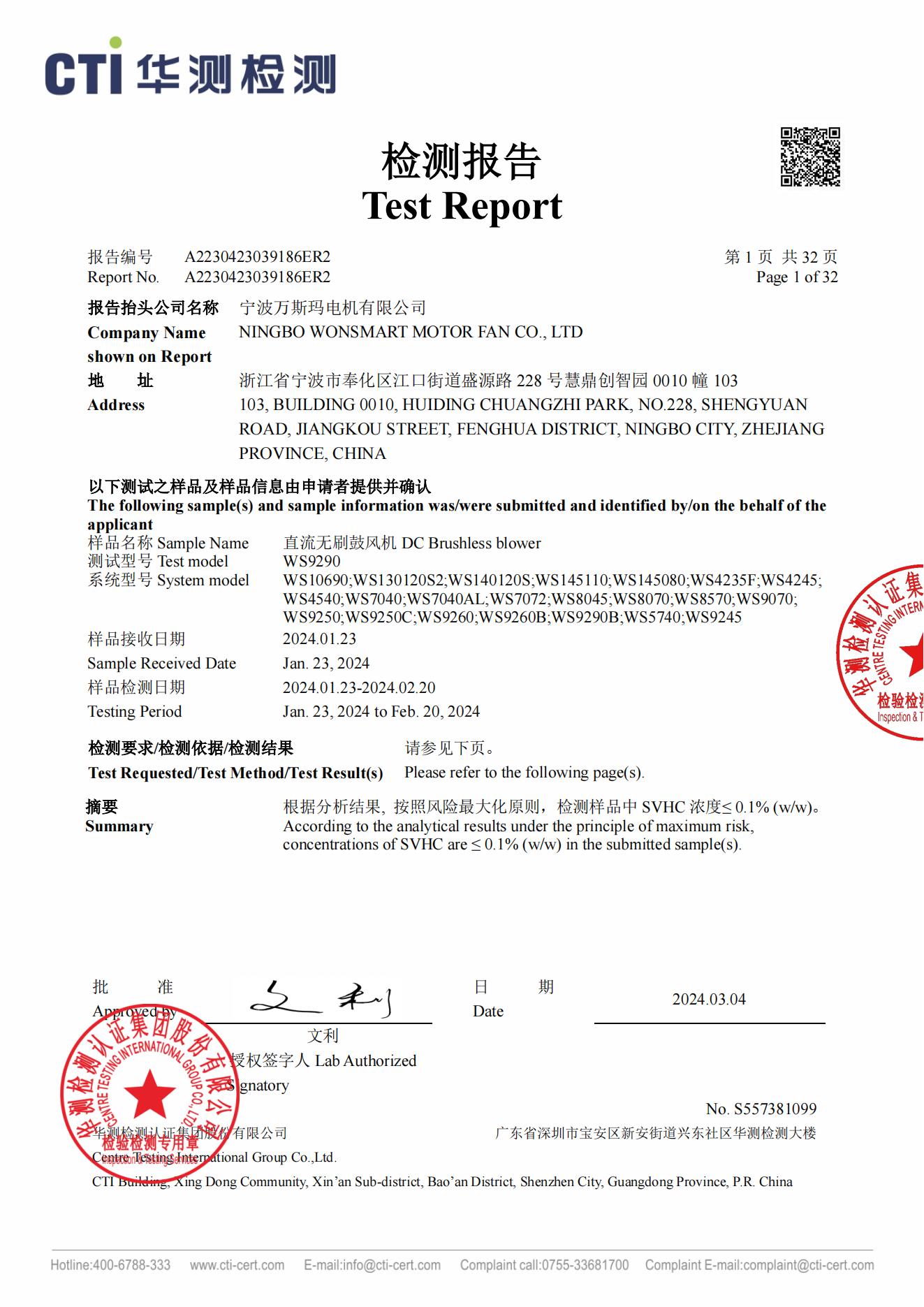

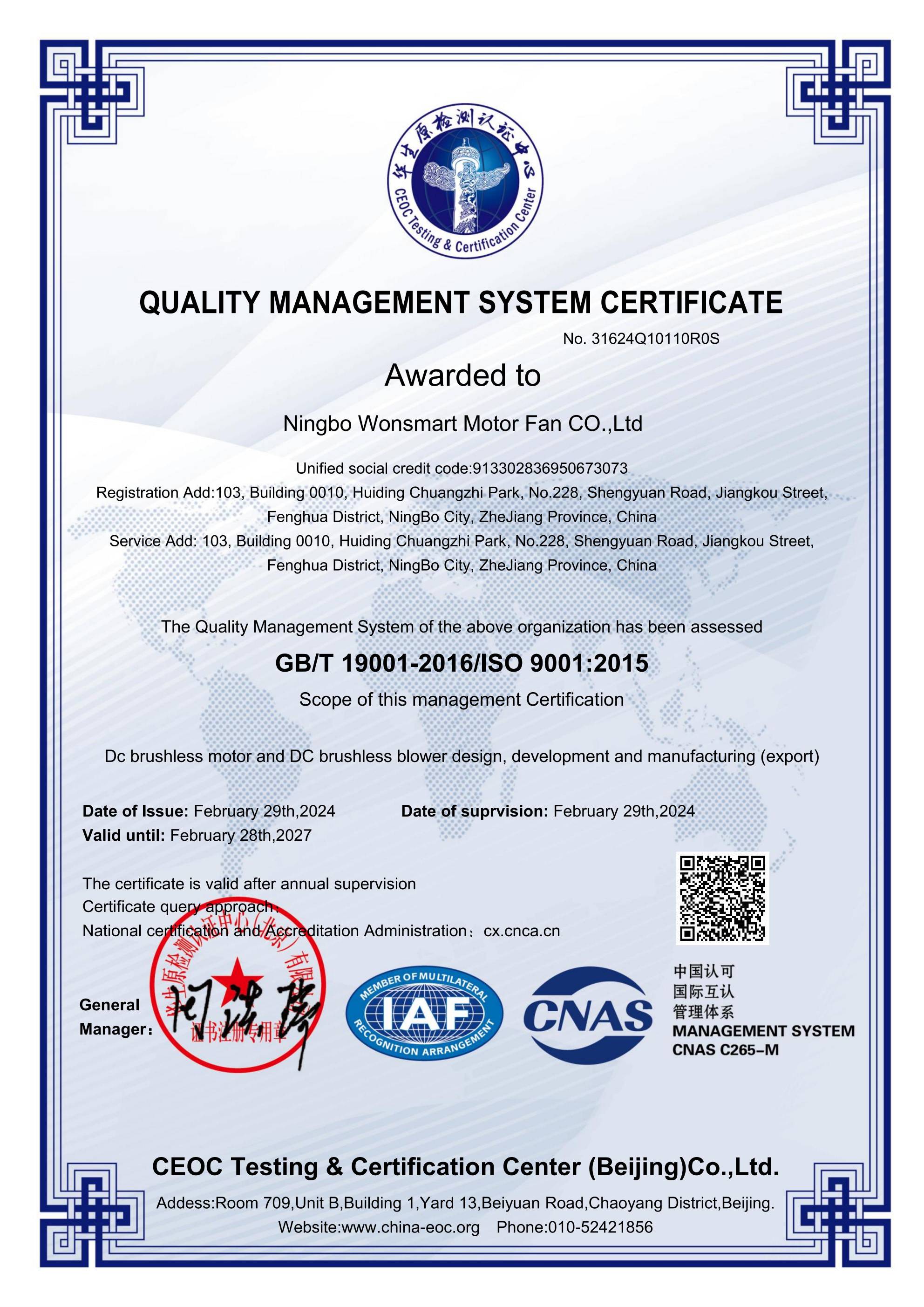

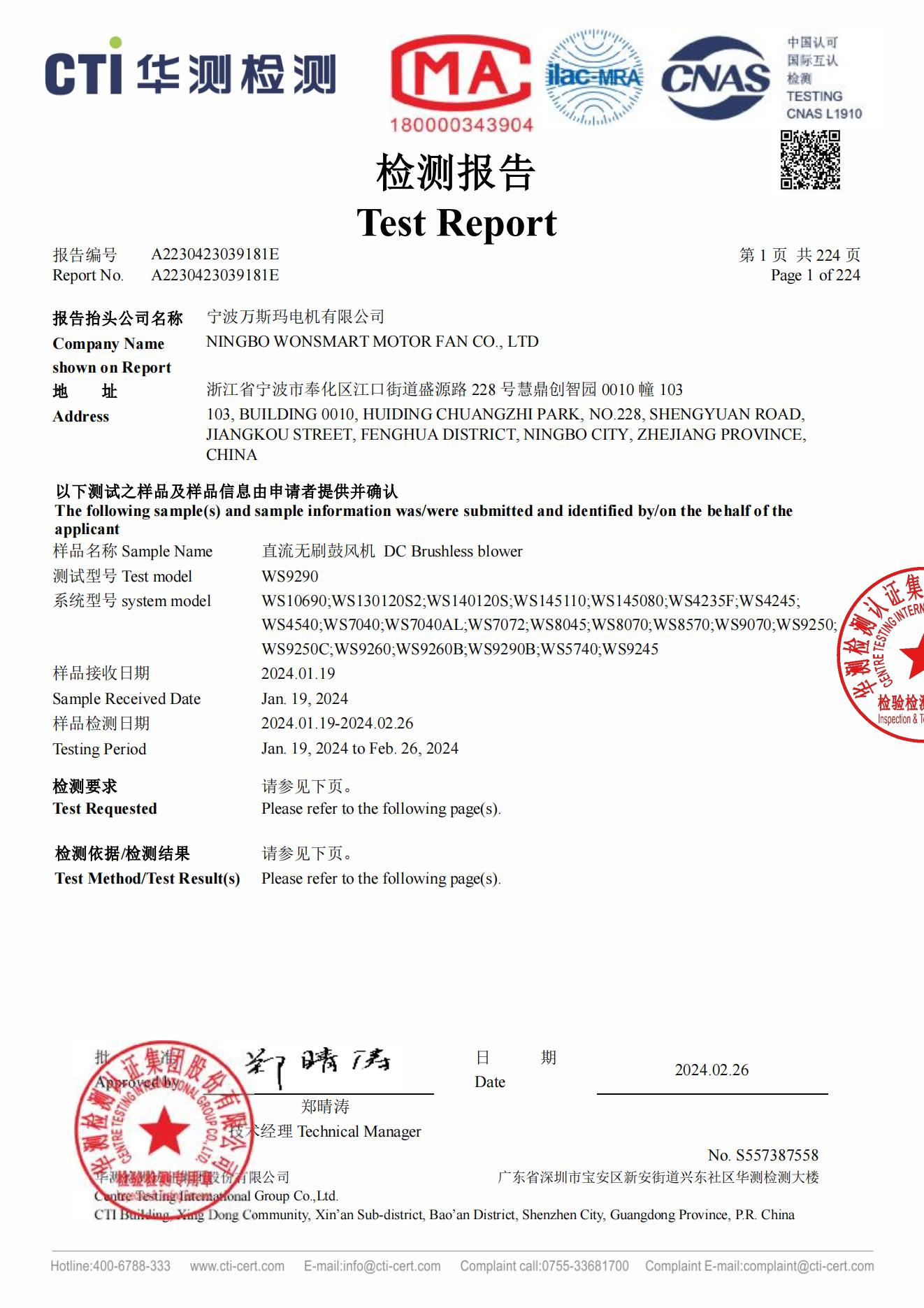

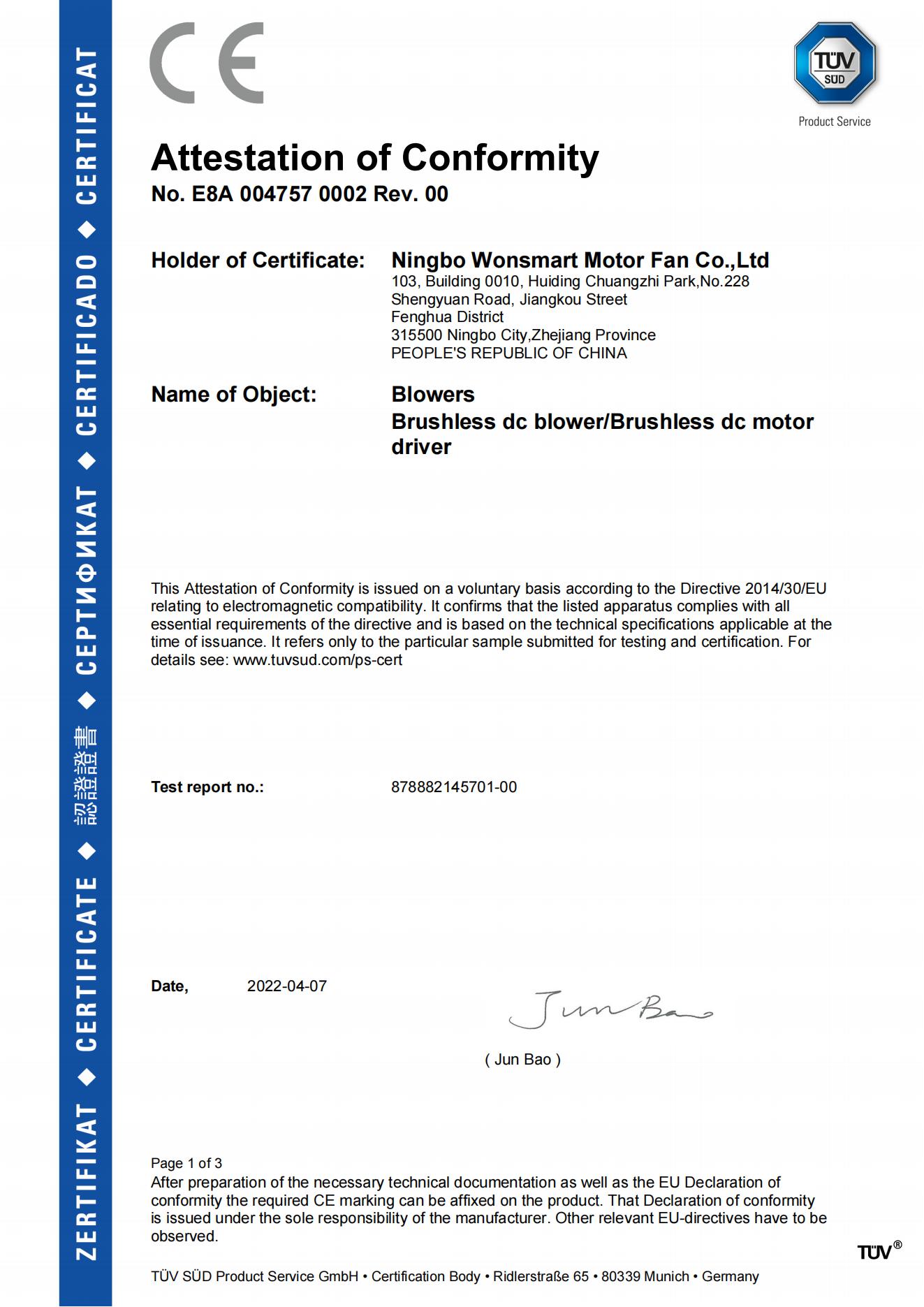

Certification: CE, RoHS,REACH,ETL |
Warranty: 1 Year |
|
After-sales Service Provided: Online support |
Static pressure: 5kPa |
|
Controller: internal |
Speed Level:49000rpm |
|
Housing material:PC |
Weight: 85g |
|
Motor type:Three Phase DC Brushless Motor |
Unit size: D45mm*H40mm |
|

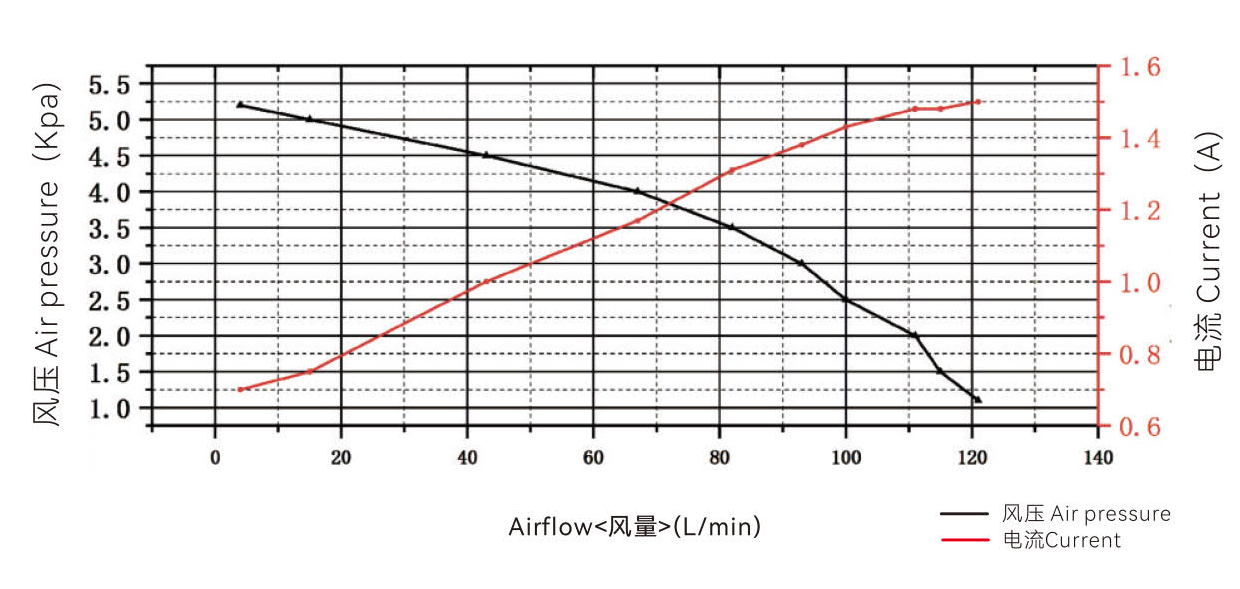

Air pressure(kPa) |
Air flow(L/min) |
Speed(r/min) |
Power（W） |
|
0 |
120.0 |
45,000 |
19.2 |
|
3.5（Working Point） |
82.0 |
47,000 |
15.2 |
|
5.0 |
0 |
49,000 |
10.8 |
| Part No | WS4540-12-NZ03 | WS4540-24-V200 |
| Voltage | 12 vdc | 24 vdc |
| Air flow | 7.2 m3/h | 7 m3/h |
| Air pressure | 5.0 kpa | 4.5 kpa |
| Rated Current | 0.9A-1.6A | 0.5 A-1 A |
|
Rated Power |
10.8W-19.2W | 12W-24W |
| Rated Speed | 45,000RPM-49,000RPM | 42,000RPM-45,000RPM |
