WS140120S-48-130-X300
WS140120S-48-130-X300

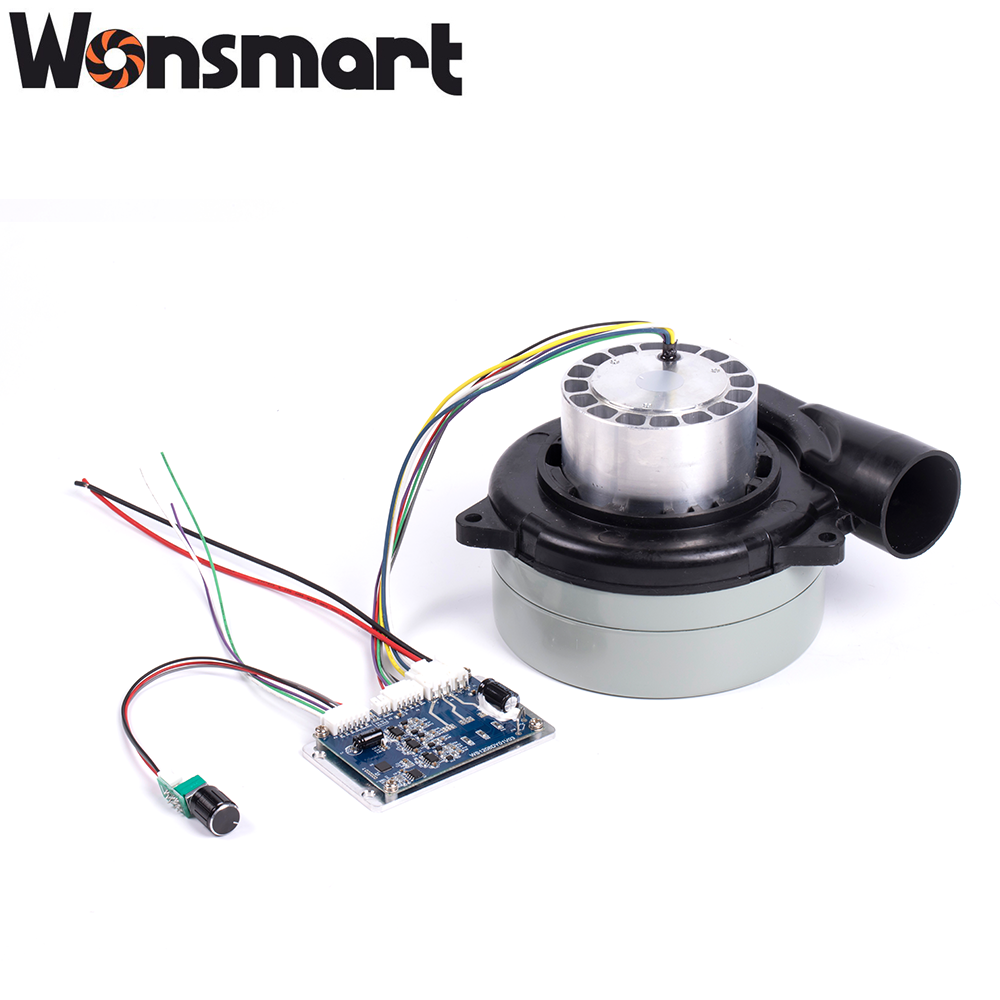

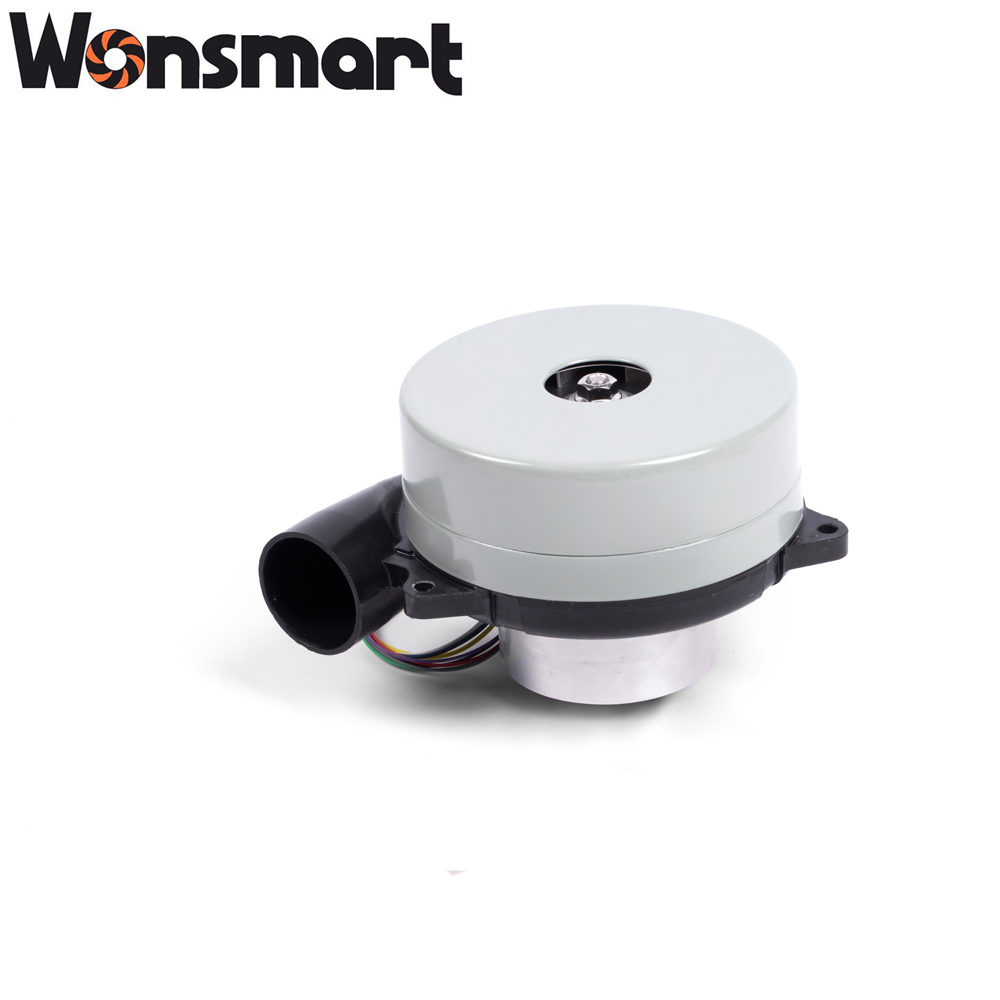

Centrifugal DC Brushless Blower FREE Standing High Speed& High Pressure 48V High efficiency with CE&ETL Certification WONSMART.Suitable for air cushion machine/CPAP machine/fuel cell/medical equipment.
-
WS140120S-48-130-X300总装图.pdf
| Part No | WS140120S-48-130-X300 |
| Voltage | 48VDC |
|
At Max Air flow |
|
| Speed | 13,000 rpm |
| Current | 6.2A |
| Power | 297W |
| Air flow | 130m3/h 76CFM 2166LPM |
| Noise Level | 85[dba] |
|
At Max Air Pressure |
|
| Speed | 15,500rpm |
| Current | 3.5A |
| Power | 168W |
| Air pressure | 12Kpa |
| Block Noise Level | 69[dba] |
|

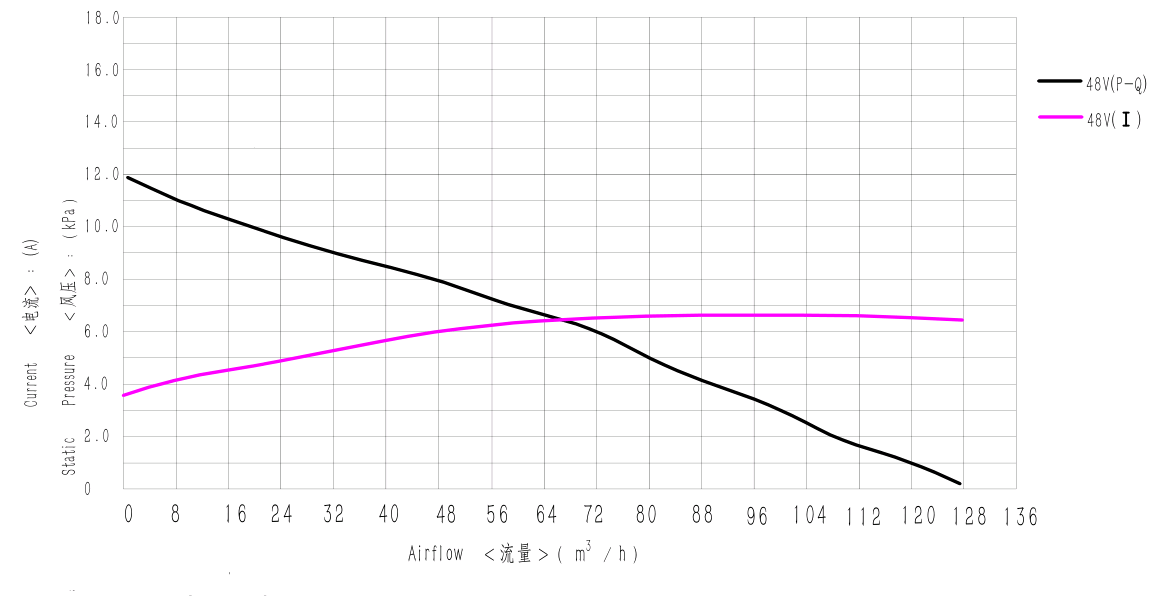

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
130.0 |
13,000 |
297.6 |
|
6.0（Working point） |
69.0 |
13,500 |
312.0 |
|
12.0 |
0 |
15,500 |
168.0 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS140120S-48-130-X300 | Voltage:48VDC |
| Air pressure:12Kpa | Air flow:130m3/h |
| Speed level:13,000rpm-15,500rpm | Power Level:168w-297w |
| Noise Level:69[dba]-90[dba] | Current Range:3.5a-6.2a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:1.5kg |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum |

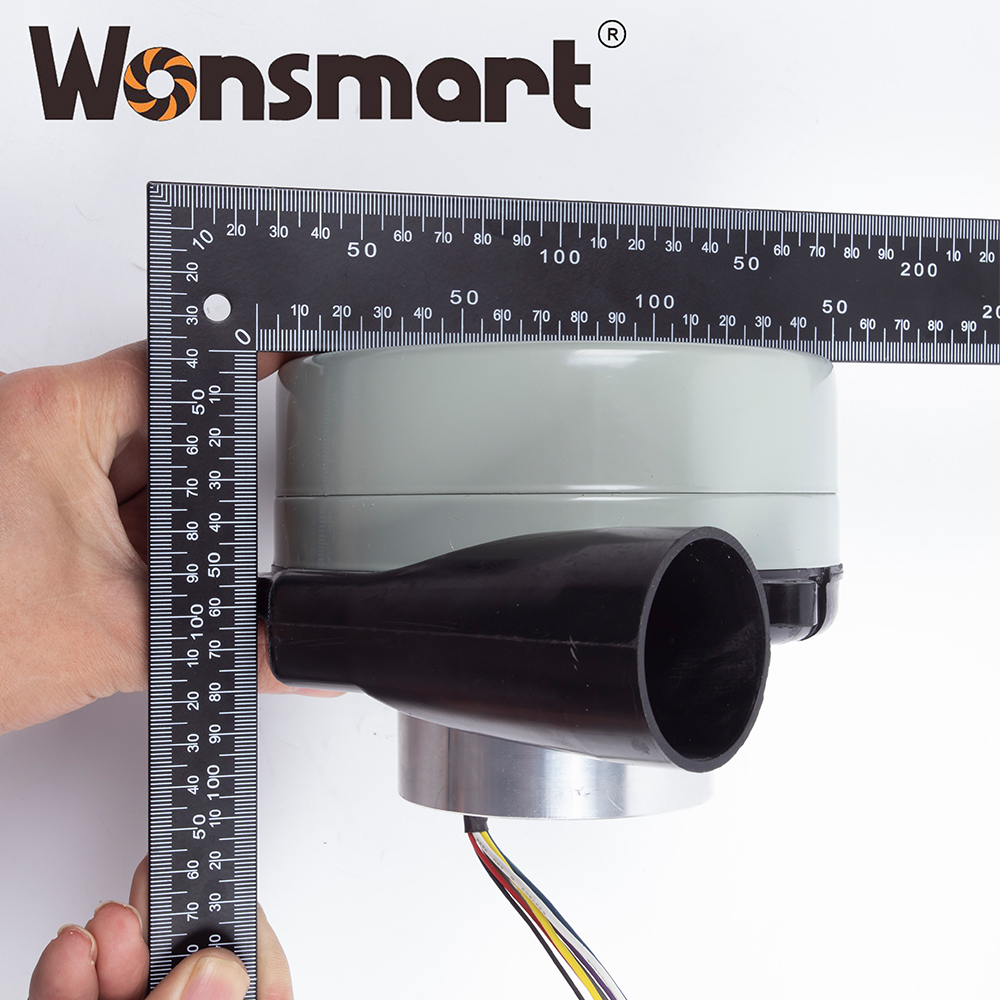

| ID of Outlet:φ43.mm | ID of Inlet:φ38.0mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Vacumm Cleaner Machine |
48V version choose 48VDC-8A power supplier |
| Part No | WS140120S-12-130-S200 | WS140120S-24-130-S200 | WS140120S-48-130-X300 | WS140120S-220-140-X200 |
| Voltage | 12 VDC | 24 vdc |
48 VDC |
220 VAC |
| Air flow | 73 m3/h | 130 m3/h | 130 m3/h | 78 m3/h |
| Air pressure | 9 kpa | 14 kpa | 12 Kpa | 10.0 kpa |
| Current Level | 22A -28A | 9A-14.5A | 3.5A-6.2A | 1A-1.6A |
|
Power Level |
264W-336W | 216W-348W | 168W-297W | 220W-352W |
| Speed Level | 11,500RPM-13,500RPM | 13,000RPM-16,500RPM | 13,000RPM-15,500RPM | 12,000RPM-14,500RPM |
