WS130120S2-12-220-S200
  • WS130120S2-12-220-S200总装图-Model.pdf WS130120S2-12-220-S200总装图-Model.pdf
Share This Product:
  • Description
  • Technical Parameters
  • Advantage

Detailed introduction

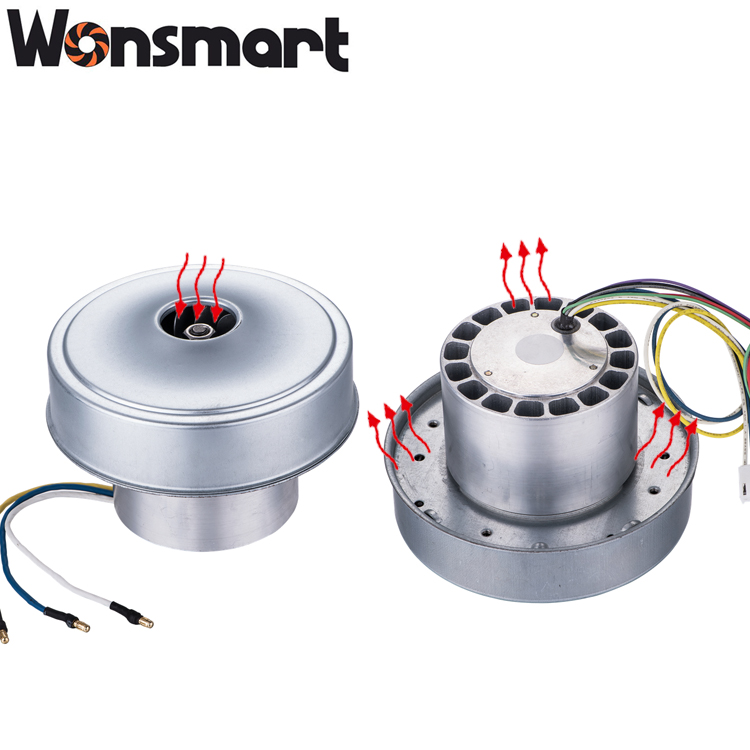

NMB ball bearing guarantee long life;

Compact size but output high pressure and airflow.

Very Suitable for compact system or tools.

Can Choose wonsmart External driver controller.

Driver controller can change speed by PWM or 0~5v signal.

Notes:

1     Do not use max pressure as working point, this point is not safe since airflow is too small.

2     To add a filter onto the inlet can make the blower run longer time;

3     The right impeller run direction is CCW.

Wiring diagram

Pin1

Red

red

+5V

Pin2

Purple

purple

Hall A

Pin3

Green

green

Hall B

Pin4

Grey

gray

Hall C

Pin5

Black

black

GND

Pin6

Yellow

yellow

Phase A

Pin7

Blue

blue

Phase B

Pin8

White

white

Phase C

WS130120S-48-220-X200

WS130120S-24-200-X200

48VDC

24VDC

22,000rpm

20,000rpm

8.2A

10.5A

112m³/h

95m³/h

26,500rpm

24,000rpm

4.7A

5.8A

13kPa

10.5kPa



Motor type

Three Phase Brushless

Bearing type

NMB Ball bearing

Dielectric Strength

500VDC for 1min

Insulation Class

Class F

Protect Class

IP54

Operating Temperature range

-20deg.C~+50deg.C(No Condensation)

Service Life L10(40 C degree Rated Operation Point)

10,000 hours

(Winding Type)

(Delta)

Hall effect Sensor

120

Speed and Hall pulse relationship

1Hz=30 r/min

Driver Type

WS2408DY01V01-SRP008/WS4807DY02V04-SRP008

Product Mass

1kg
