Detailed introduction
NMB ball bearing guarantee long life;
Compact size but output high pressure and airflow.
Very Suitable for compact system or tools.
Can Choose wonsmart External driver controller.
Driver controller can change speed by PWM or 0~5v signal.
Notes：
1 Do not use max pressure as working point, this point is not safe since airflow is too small.
2 To add a filter onto the inlet can make the blower run longer time;
3 The right impeller run direction is CCW.
|

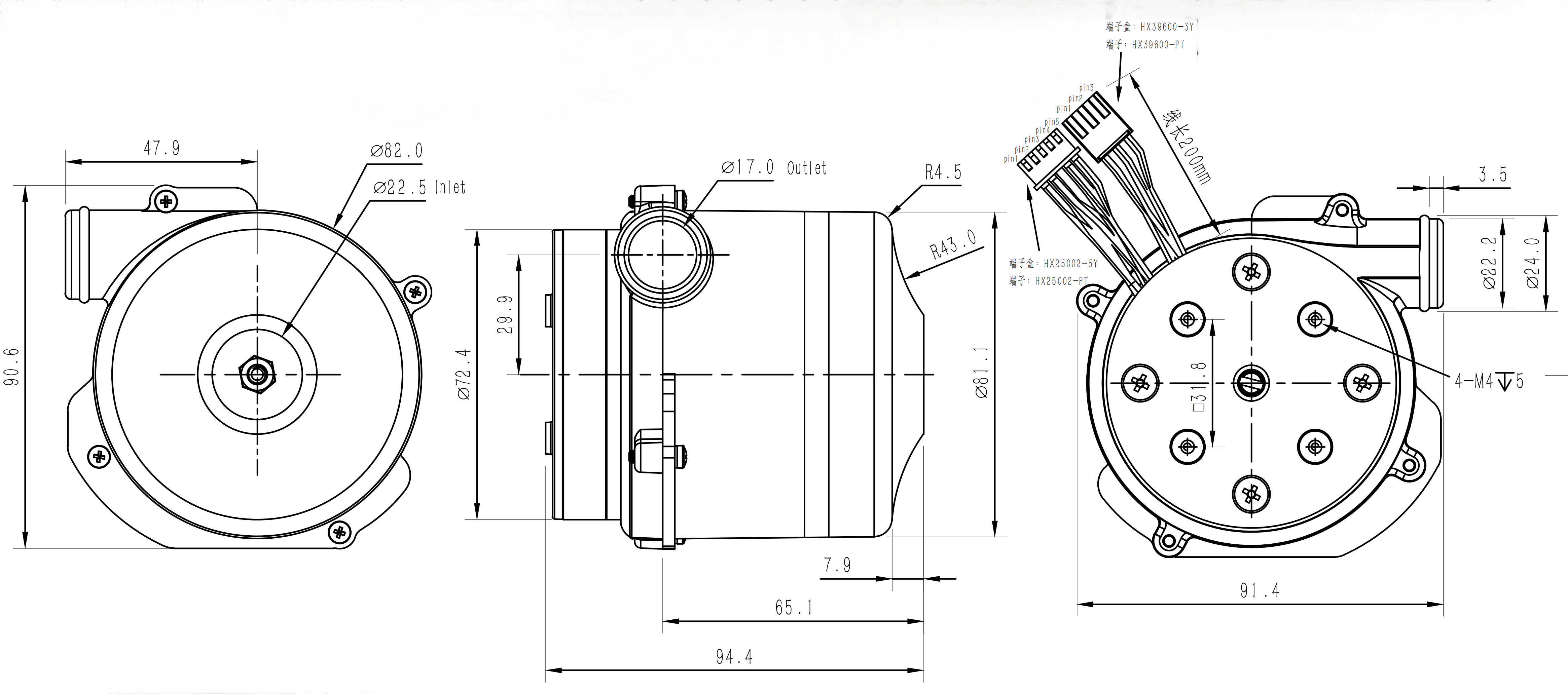

Wiring diagram |
|||
|
Pin1 |
Red |
red |
+5V |
|
Pin2 |
Purple |
purple |
Hall A |
|
Pin3 |
Green |
green |
Hall B |
|
Pin4 |
Grey |
gray |
Hall C |
|
Pin5 |
Black |
black |
GND |
|
Pin6 |
Yellow |
yellow |
Phase A |
|
Pin7 |
Blue |
blue |
Phase B |
|
Pin8 |
White |
white |
Phase C |
|
|

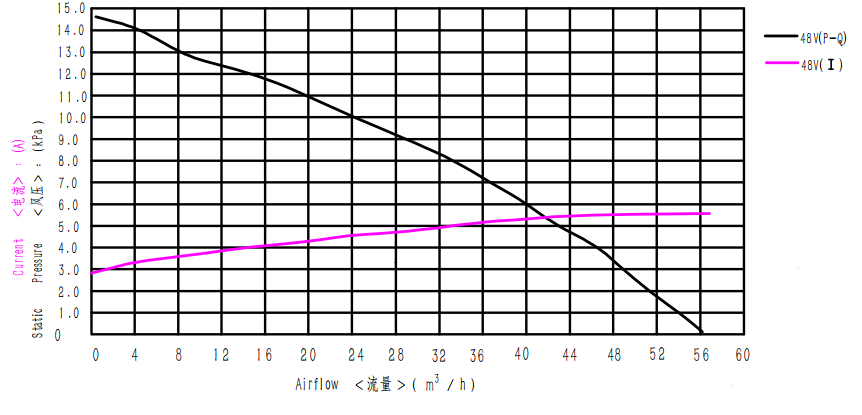

WS9290-24-220-X200 |
WS9290-48-240-X200 |
|
|
24VDC |
48VDC |
|
|
||
|
|
22,000rpm |
24,000rpm |
|
|
7A |
3.9A |
|
|
33m³/h |
35m³/h |
|
|
||
|
|
25,800rpm |
27,300rpm |
|
|
3.4A |
2.2A |
|
|
10.5kPa |
12kPa |
|
P/N: |
unit |
WS9290-48-240-X200 |
WS9290-24-220-X200 |
|
Rated Voltage |
[V] |
48 |
24 |
|
Noise |
[dBA] |
80 |
80 |
|
Motor Pole pairs |
|
2 |
2 |
|
Resistance--phase to phase |
[Ohm] |
1.53 |
0.82 |
|
Motor type |
Three Phase Brushless |
|
Bearing type |
NMB Ball bearing |
|
Dielectric Strength |
500VDC for 1min |
|
Insulation Class |
Class F |
|
Protect Class |
IP54 |
|
Operating Temperature range |
-20deg.C~+50deg.C(No Condensation) |
|
Service Life L10(40 C degree Rated Operation Point) |
10,000 hours |
|
（Winding Type） |
（Delta） |
|
Hall effect Sensor |
120 |
|
Speed and Hall pulse relationship |
1Hz=30 r/min |
|
Driver Type |
WS2408DY01V01-SRP008/WS4807DY02V04-SRP008 |
|
Product Mass |
490g |
