WS9290-12-220-S200
WS9290-12-220-S200
As the best China brushless dc air blower,centrifugal blower,ws9290-12-220-s200 supplier,Ningbo Wonsmart Motor Fan Co.,Ltd. provides quality brushless dc air blower,centrifugal blower,ws9290-12-220-s200 to global clients
-

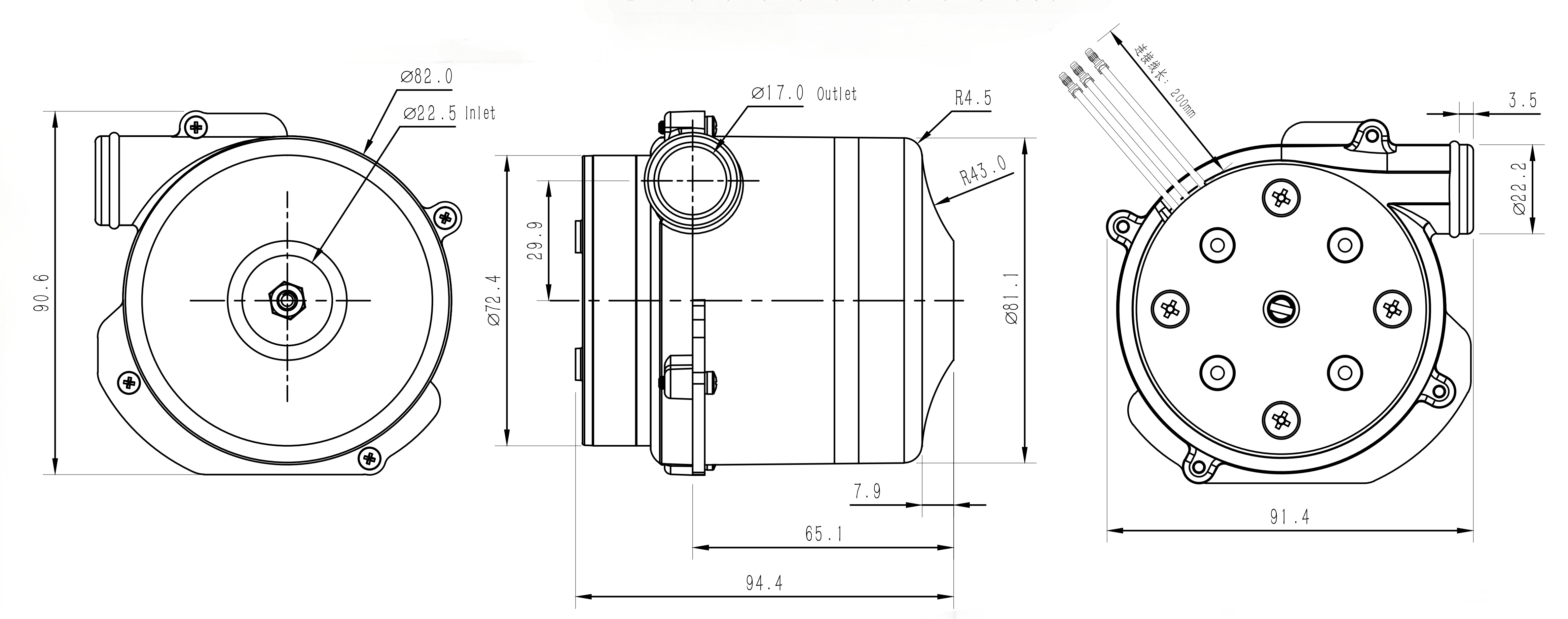

WS9290-12-220-S200总装图.pdf
| Part No | WS9290-12-220-S200 |
| Voltage | 12VDC |
|
At Max Air flow |
|
| Speed | 21,000 rpm |
| Current | 16.0 A |
| Power | 192W |
| Air flow | 32m3/h 18CFM 533LPM |
| Noise Level | 83[dba] |
|
At Max Air Pressure |
|
| Speed | 24,000rpm |
| Current | 10.0A |
| Power | 120.0W |
| Air pressure | 9Kpa |
| Block Noise Level |
58[dba] |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS9290-12-220-S200 | Voltage:12VDC |
| Air pressure:9Kpa | Air flow:32m3/h |
| Rated Speed:21,000rpm-24,000rpm | Rated Power:120w-192w |
| Noise Level:58[dba]-83[dba] | Current range:10a-16a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:490g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Plastic |
| ID of Outlet:φ17.0mm | ID of Inlet:φ22.5mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Industial Automation |
12V version choose 12VDC-20A power supplier |
|

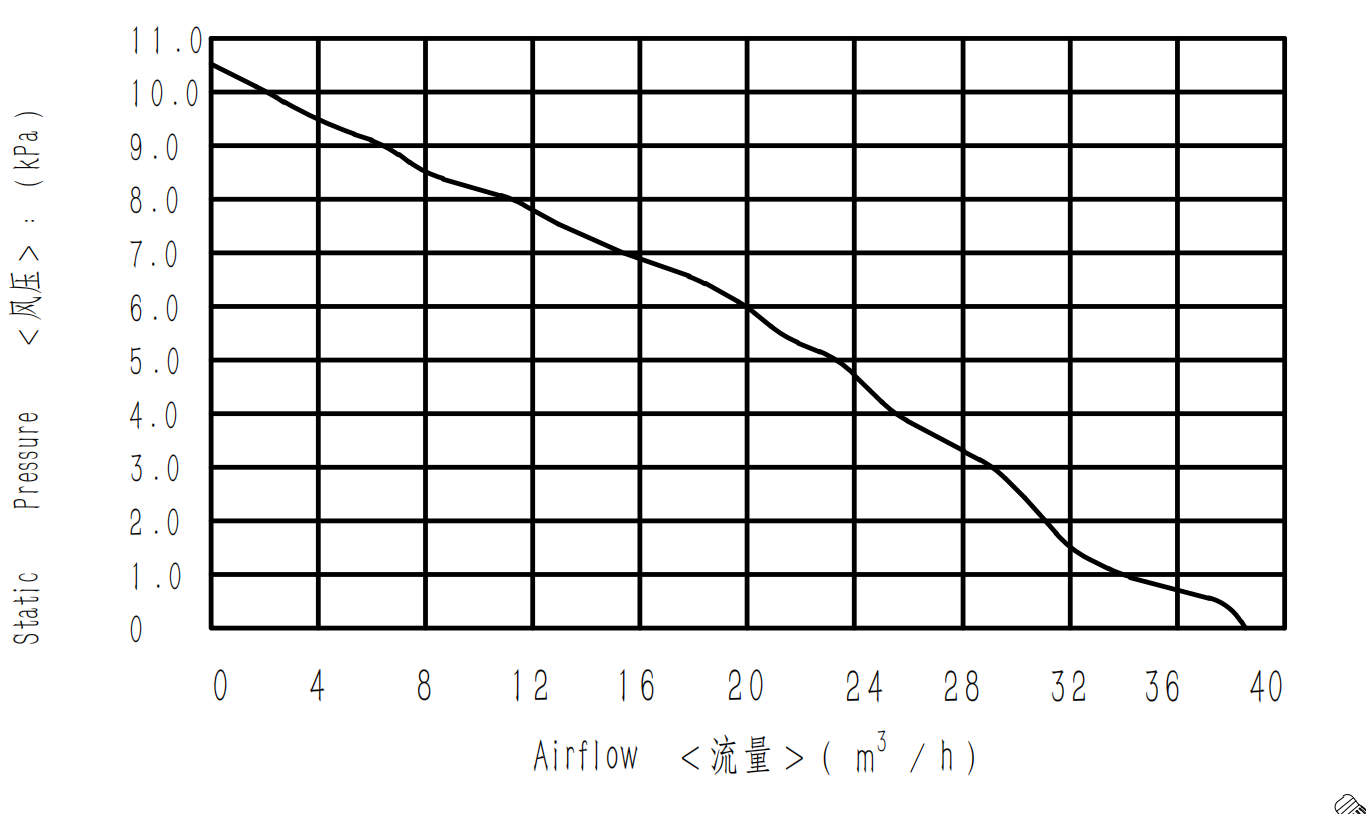

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
32.0 |
21,000 |
192.0 |
|
5.5（Working point） |
18.0 |
24,000 |
168.0 |
|
9.0 |
0 |
24,000 |
120.0 |
| Part No | WS9290-12-220-S200 | WS9290-24-250-X200 | WS9290-48-240-X200 | WS9290-220-240-X300 |
| Voltage | 12 vdc | 24 vdc | 48 vdc | 220 vac |
| Air flow | 32 m3/h | 47 m3/h | 55 m3/h | 55 m3/h |
| Air pressure | 9.0 kpa | 12.5 kpa | 14 kpa | 11.67 kpa |
| Current | 10a-16a | 5.2A-7.8A | 2.9A-5.5A | 0.89A - 1.49A |
|
Power |
120W-192W | 124.8W-187.2W | 139.2W-264W | 195.8W - 308W |
| Speed | 21,000RPM-24,000RPM | 22,500RPM-28,500RPM | 26,000RPM-30,000RPM | 24,000RPM-27,200RPM |
