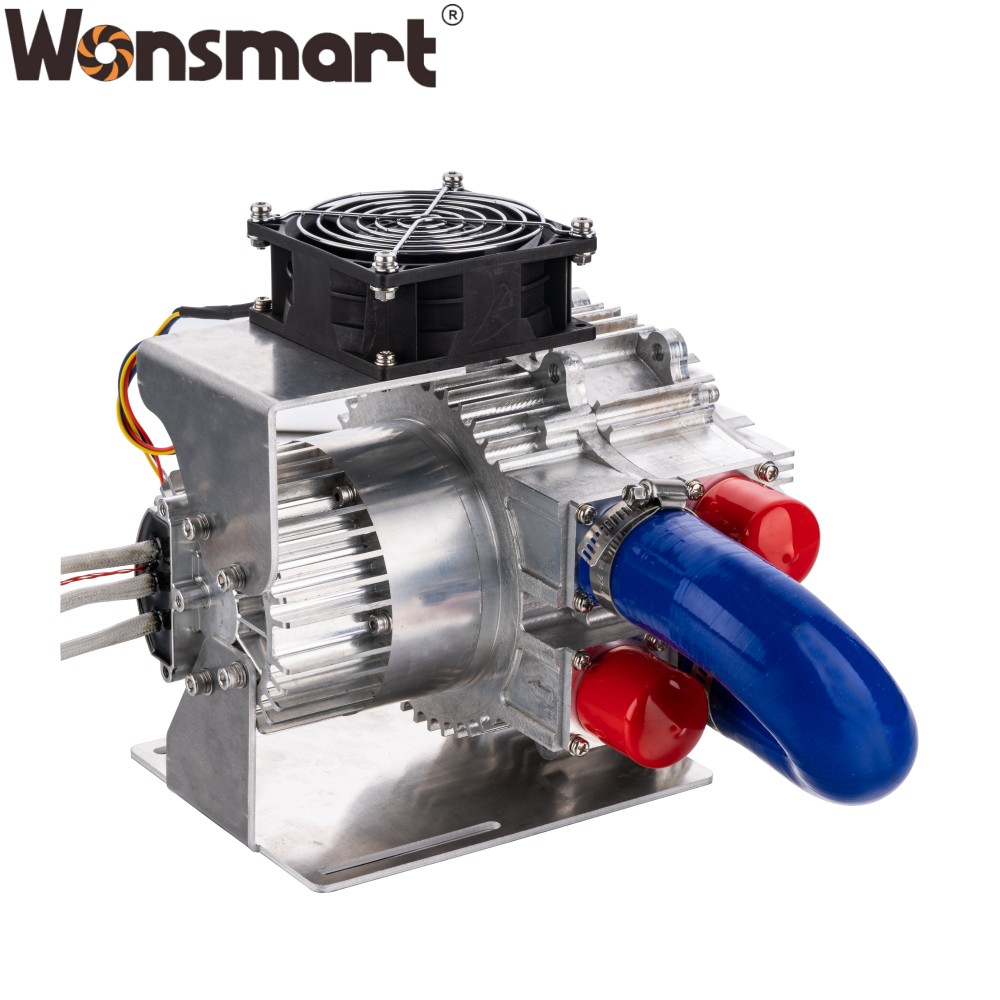

| Part No | WS145140-48-170-S200 |
| Voltage | 48VDC |
|
At Max Air flow |
|
| Speed | 18,000 rpm |
| Current | 14.5A |
| Power | 696W |
| Air flow | 95m3/h 55CFM |
|
At Max Air Pressure |
|
| Speed | 14,500rpm |
| Current | 58A |
| Power | 2784W |
| Air pressure | 88Kpa |
|
Voltage:48VDC |
Size:145*140MM |
Weight:6.5kg |
Fuel Cell’s Power:10～20kw |
|
Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
95 |
18,000 |
696.0 |
|
42.0（Working point） |
57 |
16,600 |
1848.0 |
|
86.0 |
0 |
14,500 |
2784.4 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS145140-48-170-S200 | Voltage:48VDC |
| Air pressure:86Kpa | Air flow:95m3/h |
| Rated Speed:14,500rpm-18,000rpm | Rated Power:696w-2784w |
| Noise Level:69[dba]-90[dba] | Current range:14.5a-58.2a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:6.5KG |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Aluminum |
| ID of Outlet:φ28.0mm | ID of Inlet:φ28.0mm |
| Moq:1 pcs | Application:Fuel cell system |
| Part No | WS145120-48-170-S200 | WS145140-48-170-S200 |
| Voltage | 48 vdc | 48 vdc |
| Air flow | 92 m3/h | 95 m3/h |
| Air pressure | 40 kpa | 86 kpa |
| Rated Current | 6.5A-29A | 14.5A-58.0A |
|
Rated Power |
312W-1392W | 696W-2784W |
| Rated Speed | 15,200RPM-17,500RPM | 14,500RPM-18,000RPM |
