WS9290B-48-240-X200
WS9290B-48-240-X200
You can buy good quality centrifugal blower,mini air blower,WS9290B-48-240-X200, we are the best distributor from China market.
-
WS9290B-48-240-X200.pdf
| Part No | WS9290B-48-240-X200 |
| Voltage | 48VDC |
|
At Max Air flow |
|
| Speed | 26,000 rpm |
| Current | 5.5 A |
| Power | 264W |
| Air flow | 55m3/h 32CFM 916LPM |
| Noise Level | 83[dba] |
|
At Max Air Pressure |
|
| Speed | 30,000rpm |
| Current | 2.9A |
| Power | 139.2W |
| Air pressure | 14Kpa |
| Block Noise Level |
58[dba] |
|

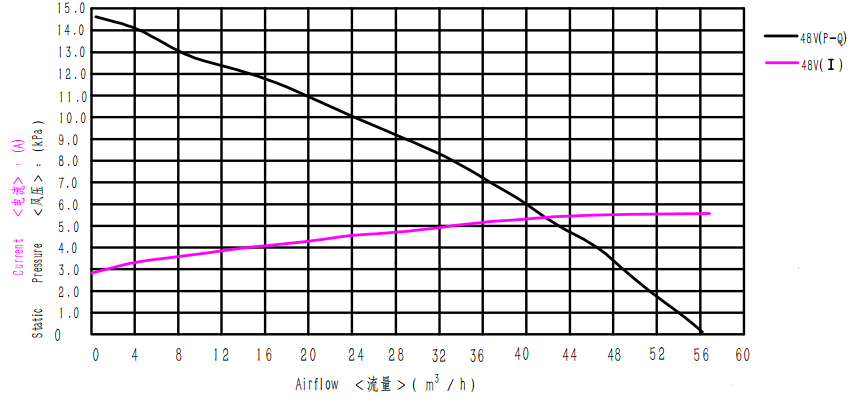

Air pressure(kPa) |
Air flow(m3/h) |
Speed (r/min) |
Power（W） |
|
0 |
55.0 |
26,000 |
264.0 |
|
9.0（Working point） |
28.0 |
27,000 |
230.4 |
|
14.0 |
0 |
30,000 |
139.2 |
| Brand name:Wonsmart | Place of Origin:Zhejiang,China |
| Part No:WS9290B-48-220-x300 | Voltage:48VDC |
| Air pressure:14Kpa | Air flow:55m3/h |
| Rated Speed:26,000rpm-30,000rpm | Rated Power:139.2w-264w |
| Noise Level:58[dba]-83[dba] | Current range:2.9a-5.5a |
|
Motor type:three phase brushless |
Bearing type:NMB Ball bearing |
|
Operation temperature range:-20℃~+60℃ |
Service Life(25℃ Rated Operation Point):15000 hours |
|
Driver type:External |
Product weight:490g |
|
Certification:CE,ETL,ROHS,REACH,ISO9001 |
Housing material:Plastic |
| ID of Outlet:φ17.0mm | ID of Inlet:φ22.5mm |
| Moq:1 pcs | Delivery Leadtime(1-10pcs):7days |
| Application:Industial Automation |
48V version choose 48VDC-6A power supplier |
| Part No | WS9290B-12-220-S200 | WS9290B-24-250-X200 | WS9290B-48-240-X200 |
| Voltage | 12 vdc | 24 vdc | 48 vdc |
| Air flow | 32 m3/h | 47 m3/h | 55 m3/h |
| Air pressure | 9.0 kpa | 12.5 kpa | 14 kpa |
| Current | 10a-16a | 5.2A-7.8A | 2.9A-5.5A |
|
Power |
120W-192W | 124.8W-187.2W | 139.2W-264W |
| Speed | 21,000RPM-24,000RPM | 22,500RPM-28,500RPM | 26,000RPM-30,000RPM |
