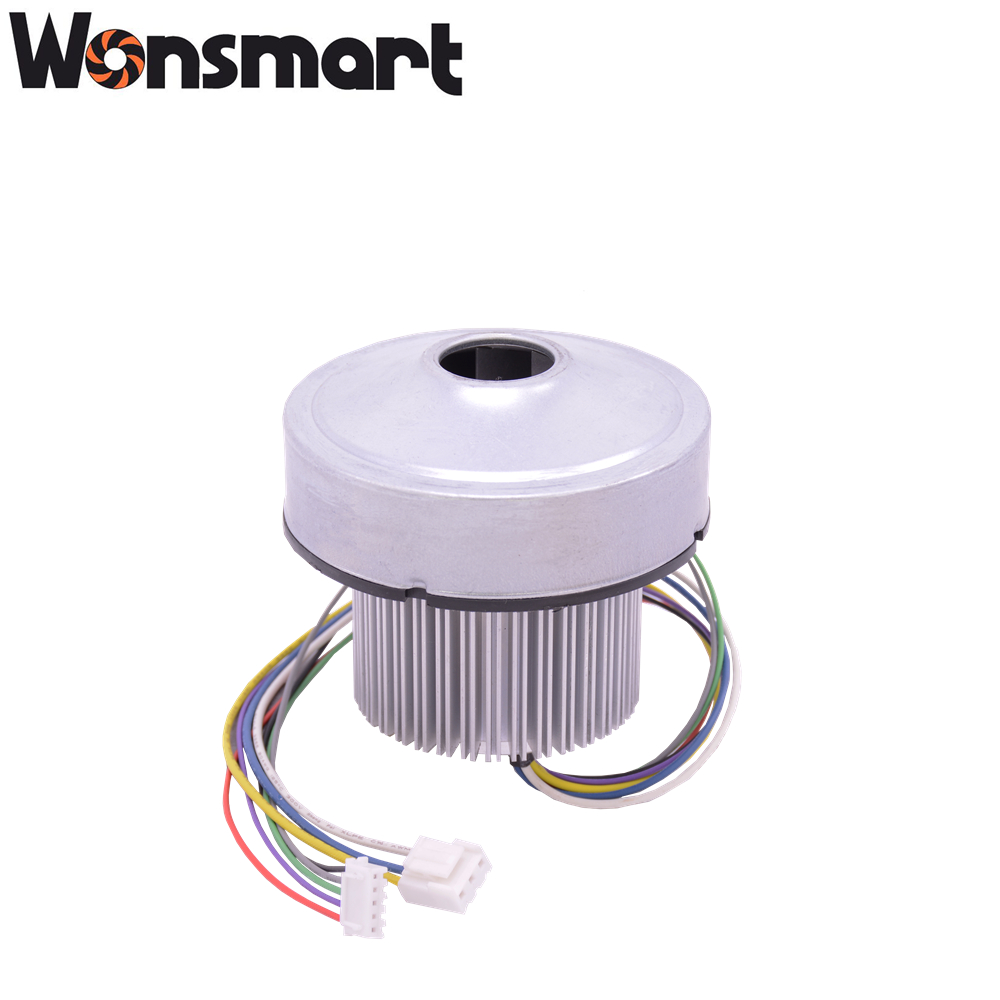

WS4235F-24-240-X200
  • WS4235F-24-240-X200总装图.pdf WS4235F-24-240-X200总装图.pdf
Share This Product:
  • Description
  • Technical Parameters

Detailed introduction

NMB ball bearing guarantee long life;

Compact size but output high pressure and airflow.

Very Suitable for compact system or tools.

Can Choose wonsmart External driver controller.

Driver controller can change speed by PWM or 0~5v signal.

Notes:

1     Do not use max pressure as working point, this point is not safe since airflow is too small.

2     To add a filter onto the inlet can make the blower run longer time;

3     The right impeller run direction is CCW.

Wiring diagram

Pin1

Red

red

+5V

Pin2

Purple

purple

Hall A

Pin3

Green

green

Hall B

Pin4

Grey

gray

Hall C

Pin5

Black

black

GND

Pin6

Yellow

yellow

Phase A

Pin7

Blue

blue

Phase B

Pin8

White

white

Phase C

WS4235F-48-260-X200

WS4235F-24-240-X200

48VDC

24VDC

26,000rpm

24,000rpm

4.4A

6A

54m³/h

48m³/h

31,700rpm

28,000rpm

2.3A

2.2A

8.5kPa

7kPa



P/N:

unit

WS4235F-48-260-X200

WS4235F-24-240-X200

Rated Voltage

[V]

48

24

Noise

[dBA]

80

80

Motor Pole pairs


2

2

Resistance --Phase to phase

[Ohm]

1.16

0.62



Motor type

Three Phase Brushless

Bearing type

NMB Ball bearing

Dielectric Strength

500VDC for 1min

Insulation Class

Class F

Protect Class

IP54

Operating Temperature range

-20deg.C~+50deg.C(No Condensation)

Service Life L10(40 C degree Rated Operation Point)

10,000 hours

(Winding Type)

(Delta)

Hall effect Sensor

120

Speed and Hall pulse relationship

1Hz=30 r/min

Driver Type

WS4807DY02V04-SRP008/WS2815DY01V01-SRP4

Product Mass

1.5kg
